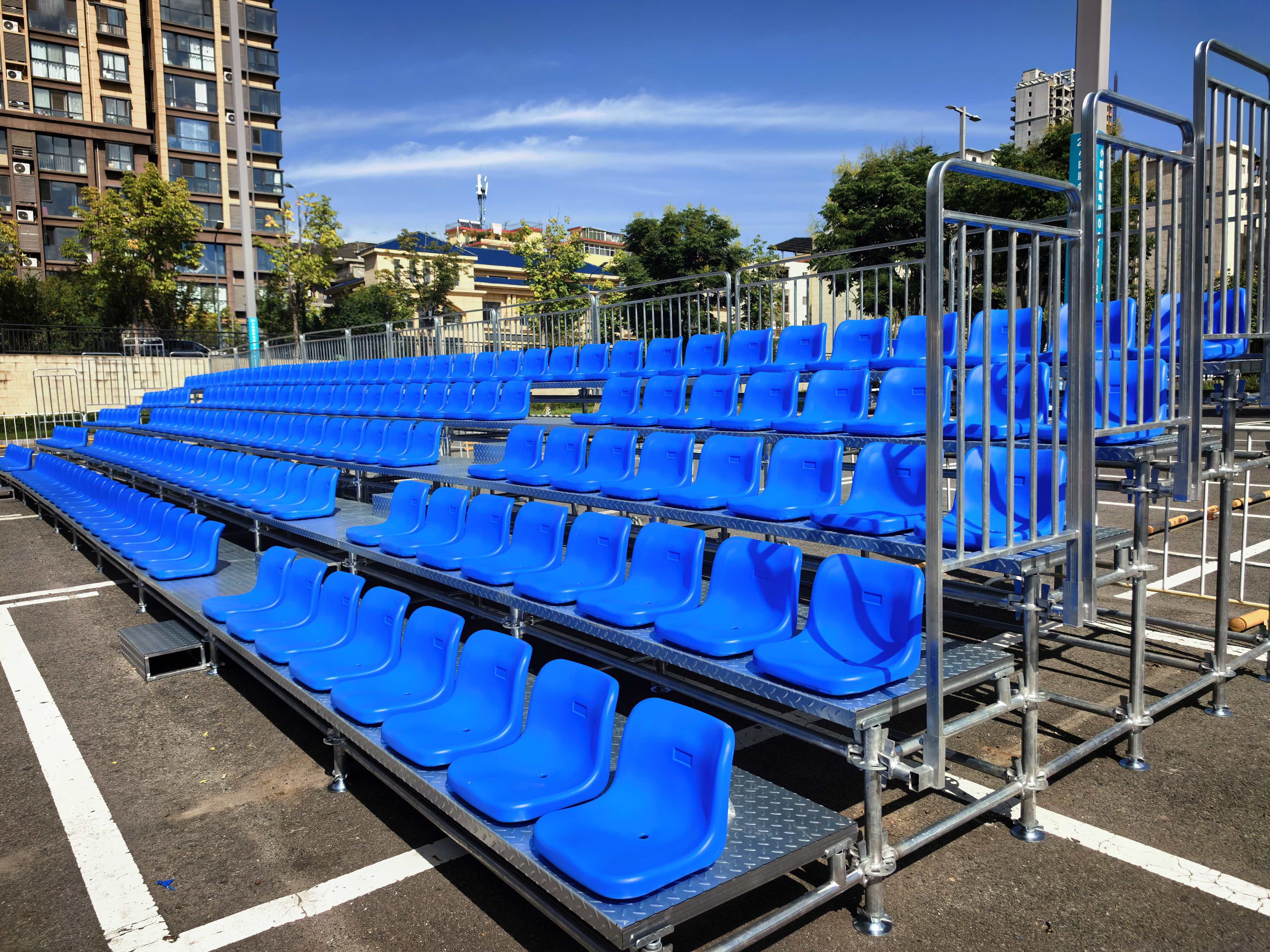

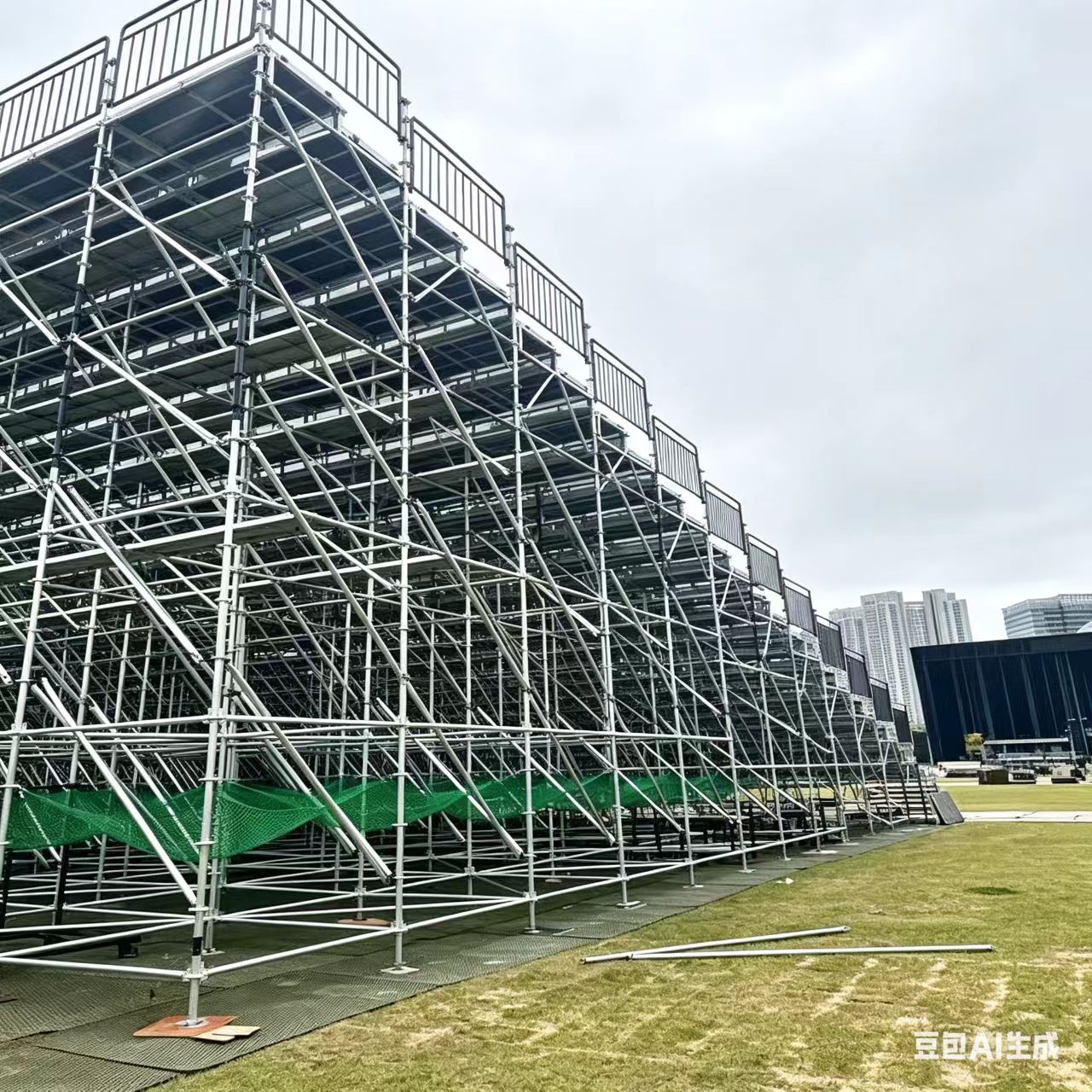

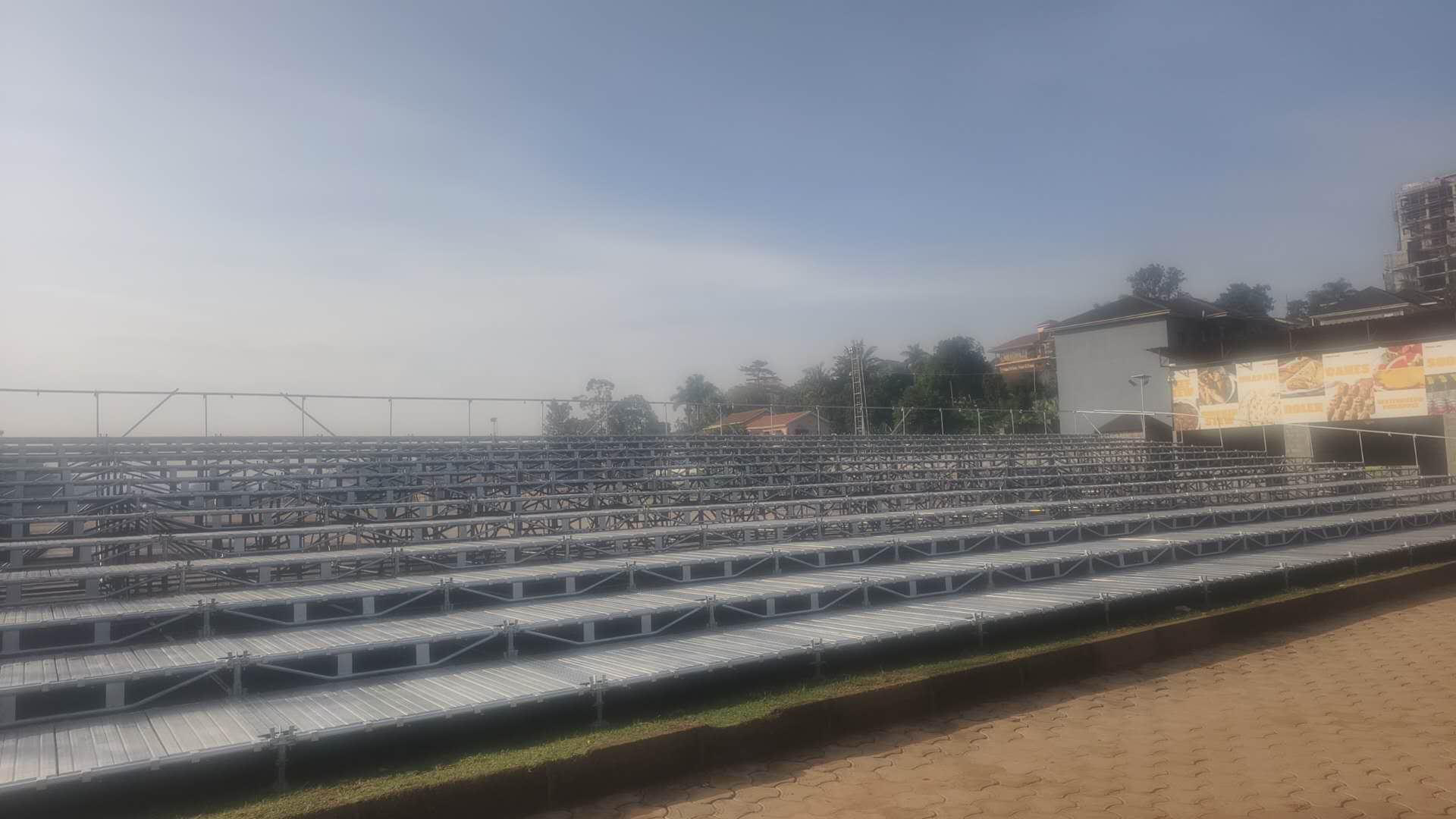

Our Ringlock Scaffolding System (Disk-Lock Scaffolding) is the industry-leading modular support structure engineered specifically for temporary audience seating, grandstands, viewing platforms, and event tiered seating projects. Designed for superior safety, speed, and versatility, it delivers stable, heavy-duty support for concerts, sports events, festivals, stadiums, and public gatherings worldwide.
Core Components
- Standards (Vertical Poles)
- Material: High-strength Q355B steel (EN Standard)
- Specification: Ø48/Ø60 × 3.25mm
- Features: Hot-dip galvanized (≥80μm zinc layer), welded rosette connectors (8 holes)
- Ledgers (Horizontal Braces)
- Quick-lock wedge heads, tool-free assembly
- Diagonal Braces
- For structural rigidity and wind resistance

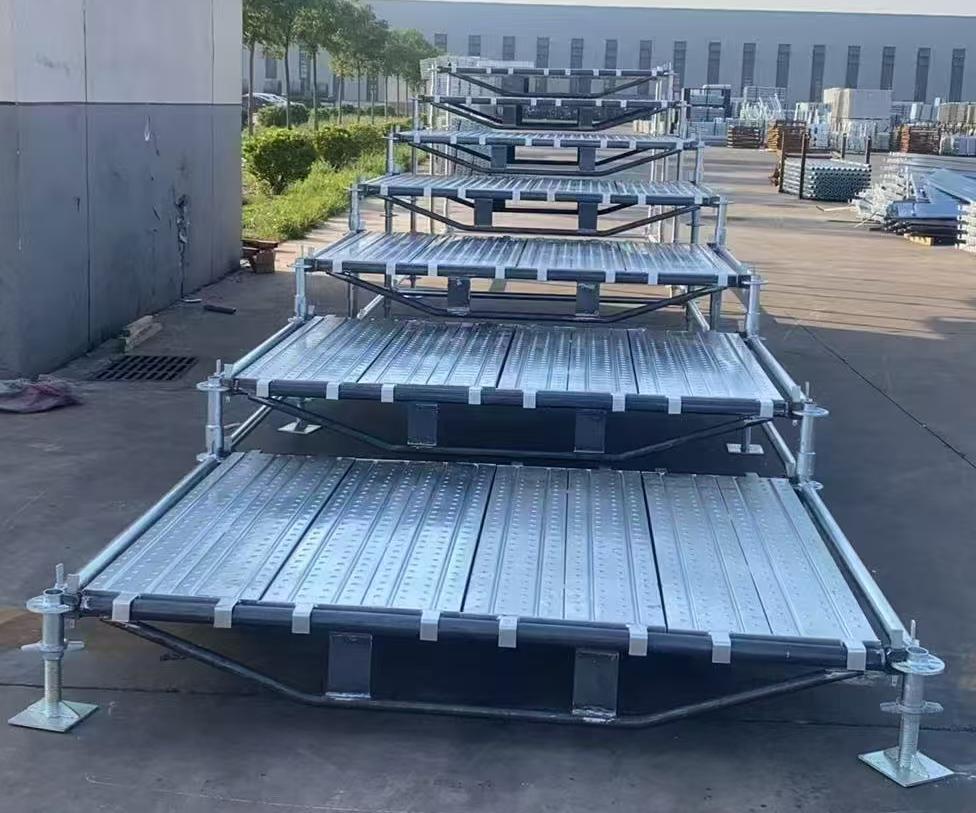

- Steel / Aluminum Platform Planks
- Anti-slip, high load capacity (275–750 kg/㎡)
- Adjustable Base Jacks & U-Head Jacks
- Leveling on uneven ground
- Accessories: Stair towers, guardrails, toe boards, bracing systems
Key Advantages for Audience Seating
✅ Superior Safety & Stability
- Rigid rosette-wedge connection, self-locking under load
- High structural stiffness, anti-twist, anti-slip
- Complies with EN 12810, EN 12811, EN 74, GB 5661
- Full guardrail & toe board systems for fall protection
✅ Ultra-Fast Assembly & Dismantling
- No bolts or tools—only a hammer
- Setup speed 3–5x faster than traditional scaffolding
- Modular “Lego-style” design reduces labor time & cost

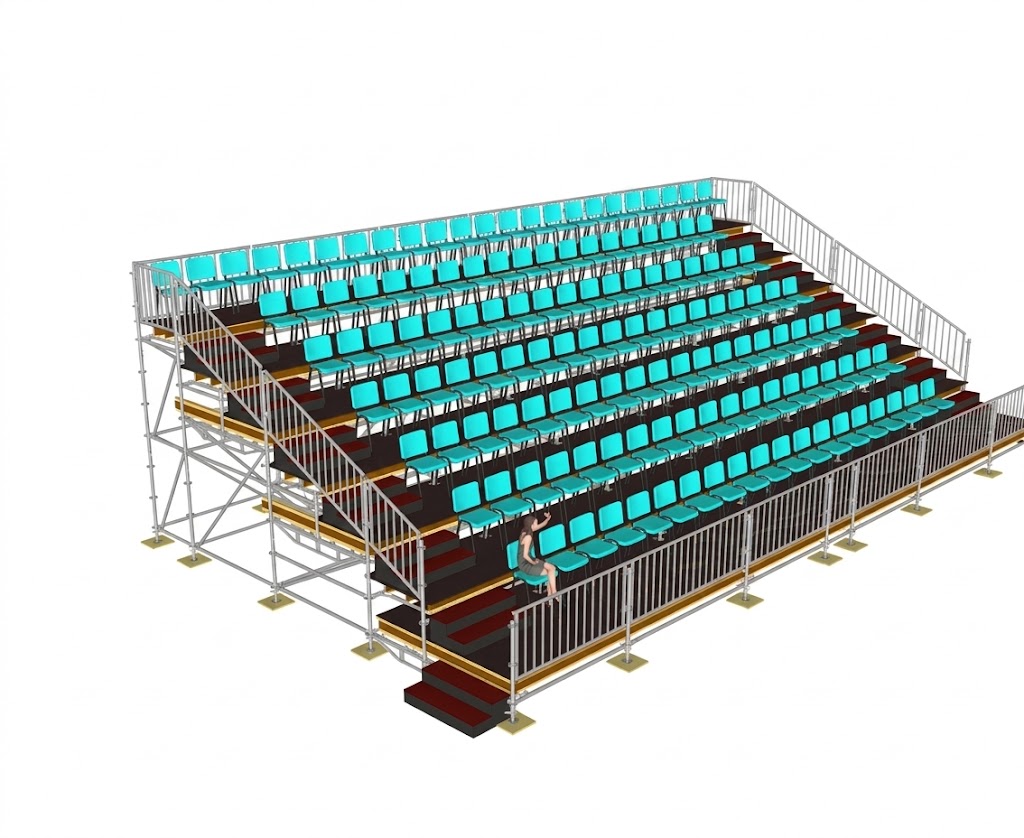

✅ Perfect for Tiered Seating Layouts
- 8 connection points per rosette: supports any angle (30°–90°)
- Easily forms straight, curved, circular, or multi-tier seating
- Flexible row spacing & height adjustment (500mm module)
✅ Heavy Load Capacity
- Single standard load: up to 9–19 tons
- Ideal for dense crowds, high-capacity grandstands
✅ Long Service Life
- Hot-dip galvanized—corrosion resistant, outdoor durability 15–25 years
- Reusable, low maintenance, high return on investment
Technical Specifications (Typical)
- Standard Sizes: 0.5m, 1.0m, 1.5m, 2.0m, 2.5m, 3.0m
- Height: Custom up to 20m+
- Typical Load: 3.0–5.0 kN/㎡ (audience seating)
- Platform Width: 0.75m–2.0m per tier
- Wind Resistance: Up to 120 km/h (with bracing)
Applications
- Concert & Festival Seating
- Sports Stadium Grandstands
- Racecourse Viewing Platforms
- Outdoor Event Tiered Seating
- Temporary Bleachers & VIP Stands
- Church & Public Gathering Seats
Why Choose Our Ringlock for Seating?
- Proven globally in thousands of event projects
- Safe, stable, code-compliant
- Fast to build—meets tight event deadlines
- Versatile for any layout or venue
- Cost-effective rental or purchase
Conclusion
Our Ringlock Scaffolding System is the #1 choice for professional temporary audience seating and grandstand projects. It combines unmatched safety, speed, and flexibility to deliver reliable, high-quality seating structures for any event.
Contact us for project design, CAD drawings, and customized seating solutions.
WUFANG specializes in customizing ringlock scaffolding system to meet the demands of different clients and different line. We can produce most parts in ringlock system . horizontal ledger ,vertical standard , diagonal brace, base collar, base jack, u head jack ,steel catwalk, reinforcing ledger, middle ledger, truss ledgers, lattice girders, side brackets, catwalk with window , catwalk without window , and various types of ladders and scaffolding ,etc.
WUFANG has been specializing in ringlock scaffolding system for over fifteen years. We not only have our own ringlock production workshop, but also our own pipe manufacturing workshop and galvanizing workshop. Which not only ensures the quality of the products but also reduces costs.
