WUFANG specializes in customizing ringlock scaffolding system to meet the demands of different clients and different line. We can produce most parts in ringlock system . horizontal ledger ,vertical standard , diagonal brace, base collar, base jack, u head jack ,steel catwalk, reinforcing ledger, middle ledger, truss ledgers, lattice girders, side brackets, catwalk with window , catwalk without window , and various types of ladders and scaffolding ,etc.
Octagonal Ringlock system is one of the main products in our company . The monthly production capacity reaches 6000 tons.
WUFANG has been specializing in ringlock scaffolding system for over fifteen years. We not only have our own ringlock production workshop, but also our own pipe manufacturing workshop and galvanizing workshop. Which not only ensures the quality of the products but also reduces costs.

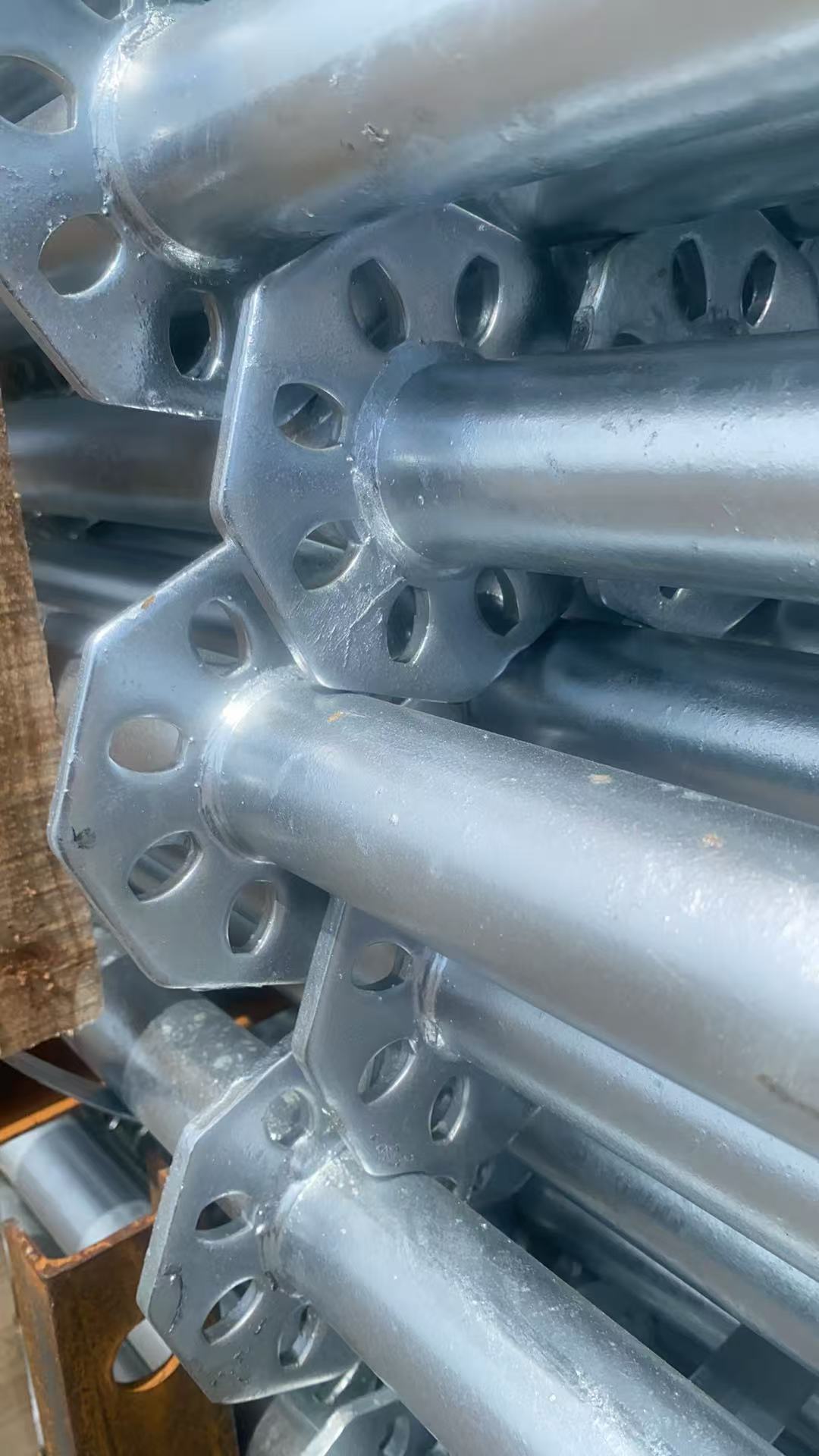

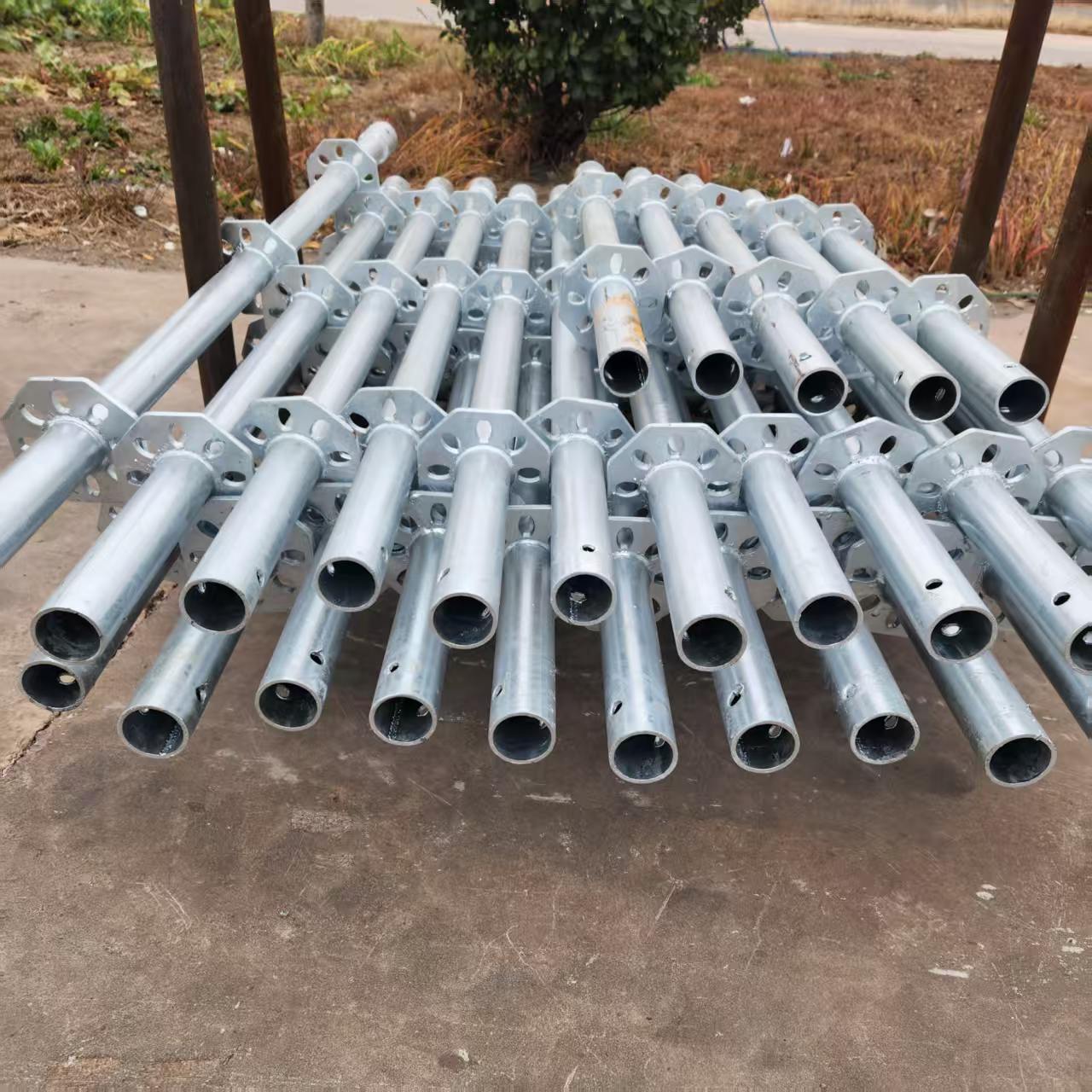

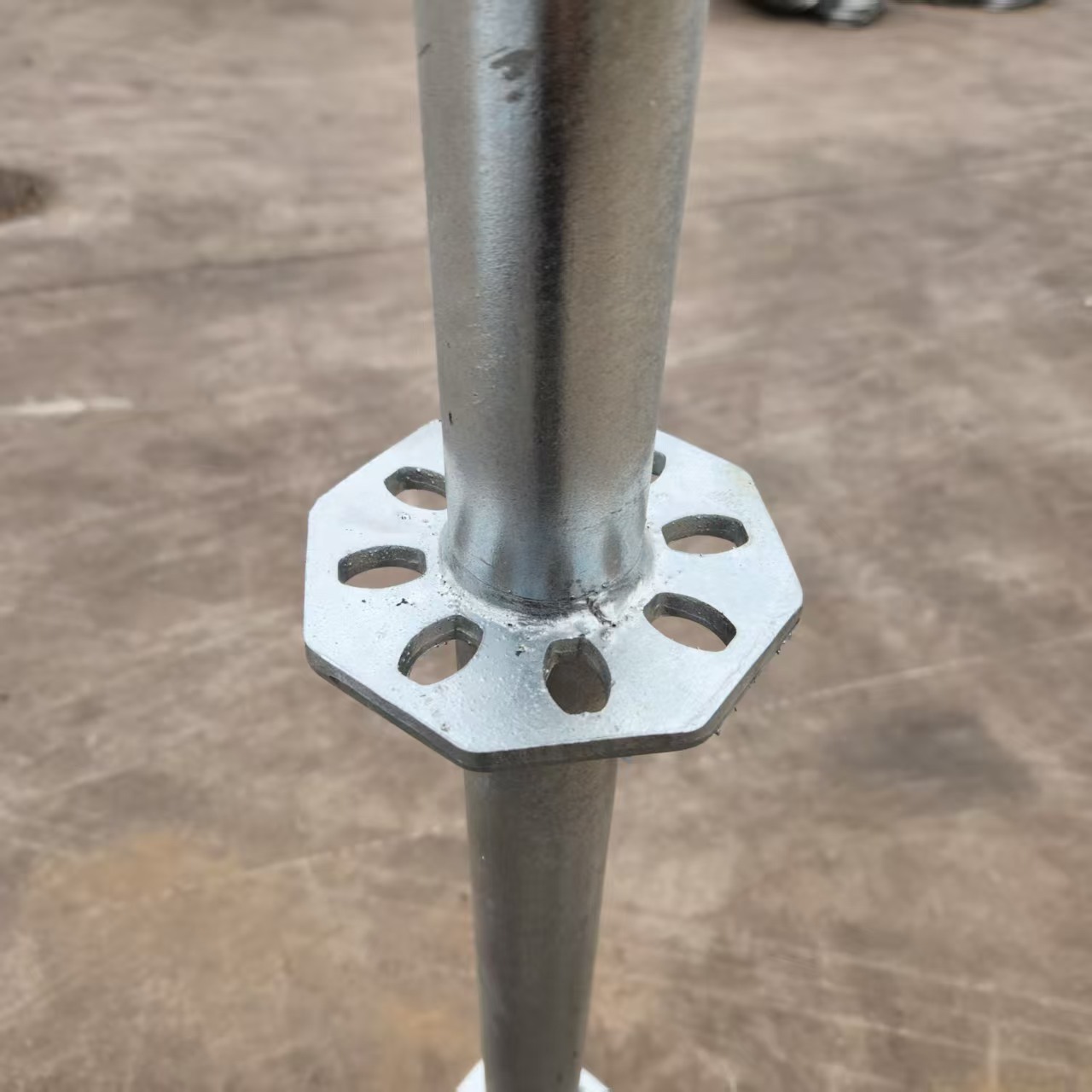

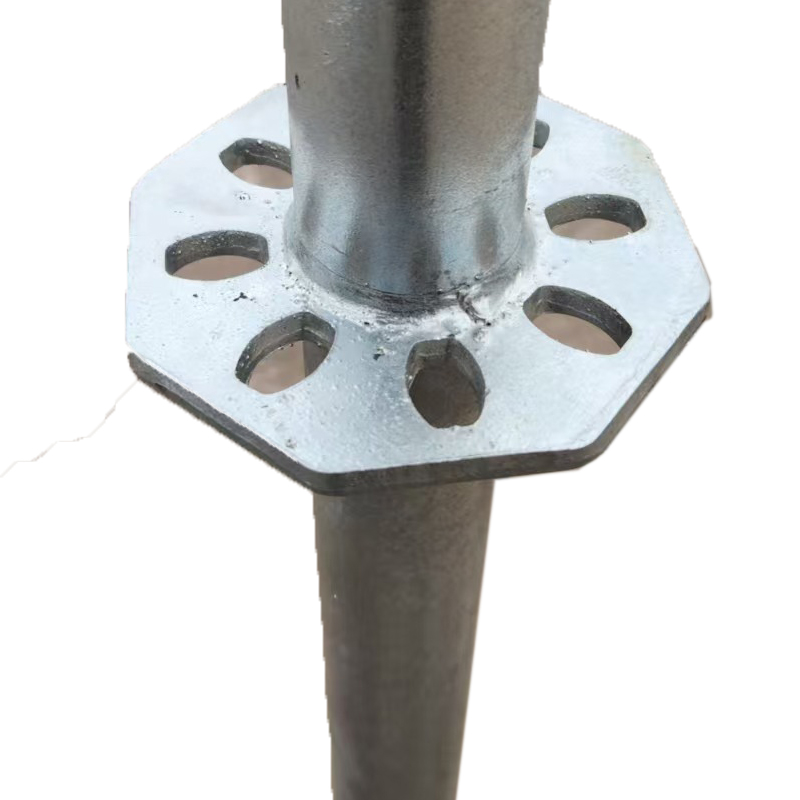

Octagonlock Scaffolding Vertical Standard with/without Spigot
Q355B Steel Tubes OD48.3 x 3.2mm
| Code | Item | Length | |
 | WF-OV001 | 1'8" Standard (1 Octagon ) 0.5M | 1'8" |
| WF-OV002 | 3'3" Standard (2 Octagon) 1.0M | 3'3" | |
| WF-OV003 | 4'11" Standard (3 Octagon) 1.5M | 4'11" | |
| WF-OV004 | 6'6" Standard (4 Octagon) 2.0M | 6'7" |

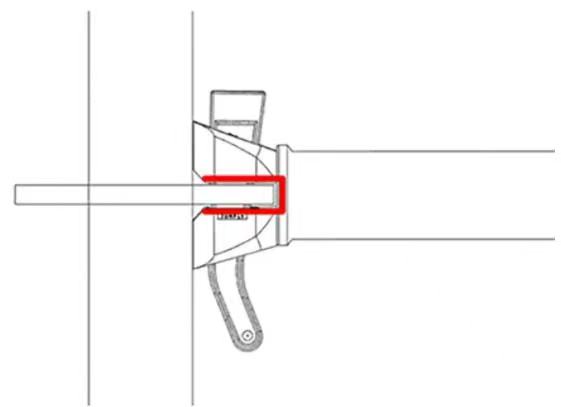

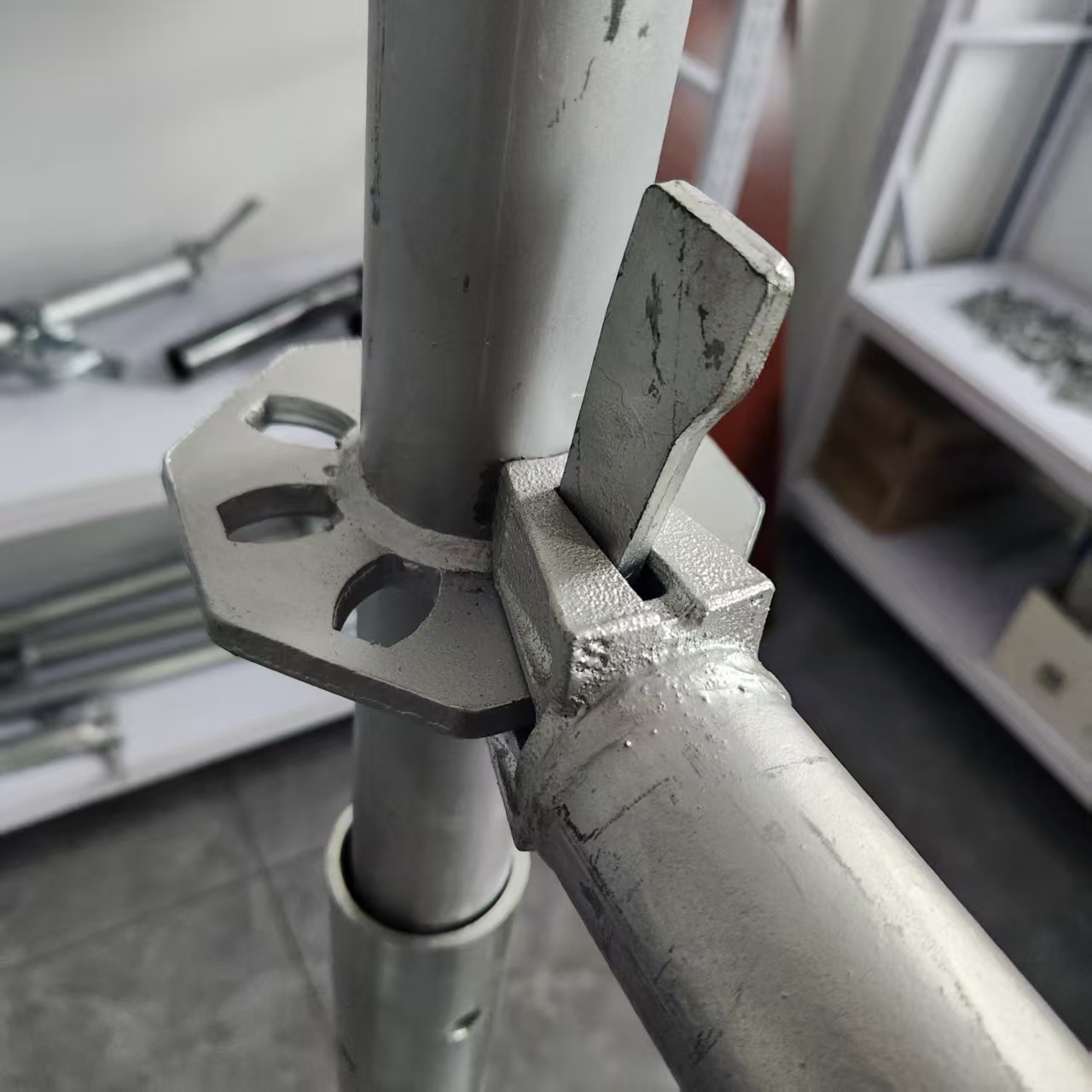

Octagonlock Scaffolding Horizontal Ledger
Q355B/Q235B Steel Tube OD48.3 x 3.2mm/3.0mm/2.75mm/2.5mm
| Code | Item | Length | |
 | WF-RL001 | Octagonlock Ledger 1.07M | 3'6" |
| WF-RL002 | Octagonlock Ledger 1.57M | 5'2" | |
| WF-RL003 | Octagonlock Ledger 2.13M | 7' | |
| WF-RL004 | Octagonlock Ledger 2.44M | 8' |

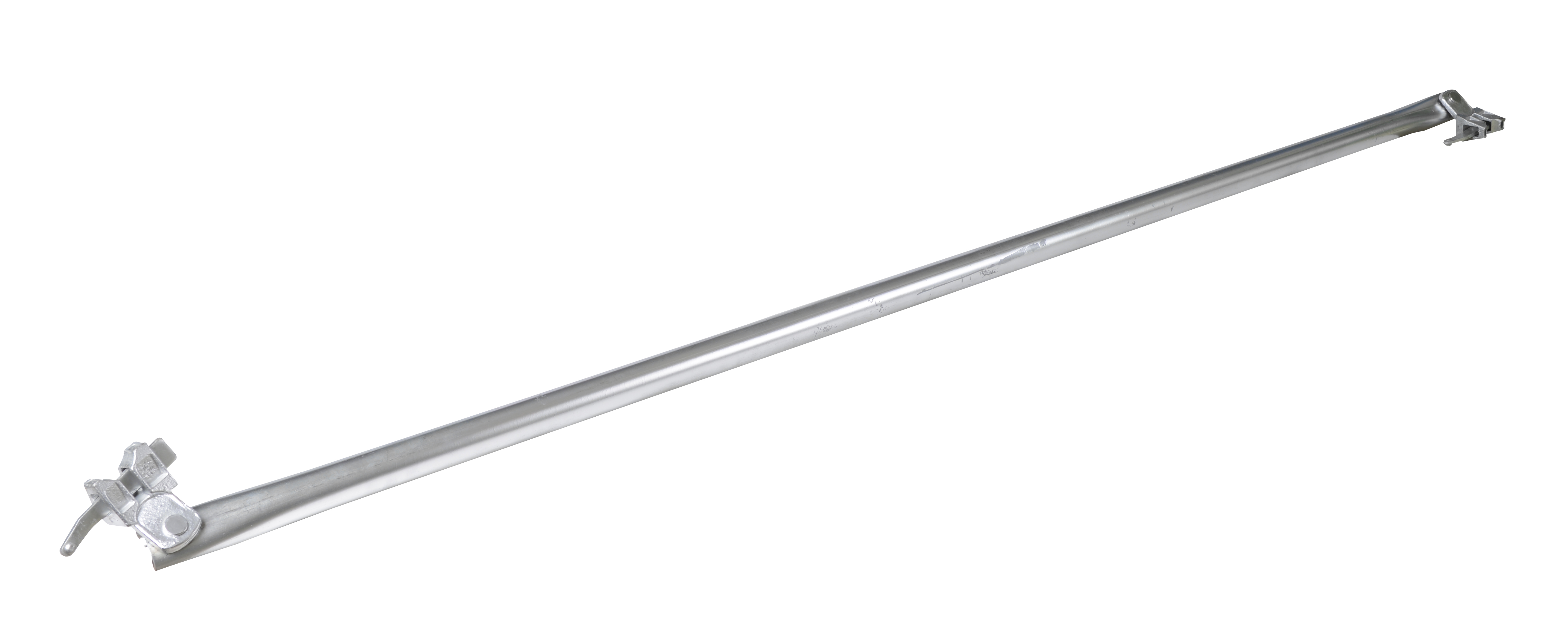

Octagonlock Scaffolding Diagonal Brace
Q355B/Q235B OD48.3 x 3.2mm/3.0mm/2.75mm/ 2.5mm Q195B Steel Tube OD42.2 x 2.75mm
| Code | Item | Width (Size A) | Height (Size H) | |
 | WF-RD001 | Octagonlock Brace 1.07x2.0M | 1.07M | 2.0M |
| WF-RD002 | Octagonlock Brace 1.57x2.0M | 1.57M | 2.0M | |
| WF-RD003 | Octagonlock Brace 2.13x2.0M | 2.13M | 2.0M |
WUFANG specializes in customizing ringlock scaffolding system to meet the demands of different clients and different line. We can produce most parts in ringlock system . horizontal ledger ,vertical standard , diagonal brace, base collar, base jack, u head jack ,steel catwalk, reinforcing ledger, middle ledger, truss ledgers, lattice girders, side brackets, catwalk with window , catwalk without window , and various types of ladders and scaffolding ,etc.
Octagonal Ringlock system is one of the main products in our company . The monthly production capacity reaches 6000 tons.
WUFANG has been specializing in ringlock scaffolding system for over fifteen years. We not only have our own ringlock production workshop, but also our own pipe manufacturing workshop and galvanizing workshop. Which not only ensures the quality of the products but also reduces costs.
Octagonlock Scaffolding Vertical Standard with/without Spigot
Q355B Steel Tubes OD48.3 x 3.2mm
| Code | Item | Length | |
| WF-OV001 | 1'8" Standard (1 Octagon ) 0.5M | 1'8" |
| WF-OV002 | 3'3" Standard (2 Octagon) 1.0M | 3'3" | |
| WF-OV003 | 4'11" Standard (3 Octagon) 1.5M | 4'11" | |
| WF-OV004 | 6'6" Standard (4 Octagon) 2.0M | 6'7" |
Octagonlock Scaffolding Horizontal Ledger
Q355B/Q235B Steel Tube OD48.3 x 3.2mm/3.0mm/2.75mm/2.5mm
| Code | Item | Length | |
| WF-RL001 | Octagonlock Ledger 1.07M | 3'6" |
| WF-RL002 | Octagonlock Ledger 1.57M | 5'2" | |
| WF-RL003 | Octagonlock Ledger 2.13M | 7' | |
| WF-RL004 | Octagonlock Ledger 2.44M | 8' |
Octagonlock Scaffolding Diagonal Brace
Q355B/Q235B OD48.3 x 3.2mm/3.0mm/2.75mm/ 2.5mm Q195B Steel Tube OD42.2 x 2.75mm
| Code | Item | Width (Size A) | Height (Size H) | |
| WF-RD001 | Octagonlock Brace 1.07x2.0M | 1.07M | 2.0M |
| WF-RD002 | Octagonlock Brace 1.57x2.0M | 1.57M | 2.0M | |
| WF-RD003 | Octagonlock Brace 2.13x2.0M | 2.13M | 2.0M |
