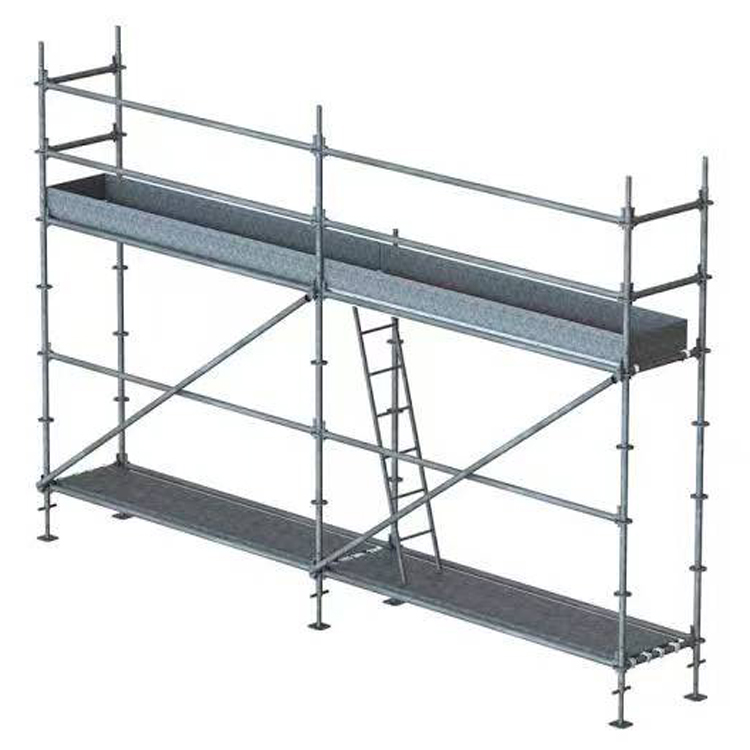

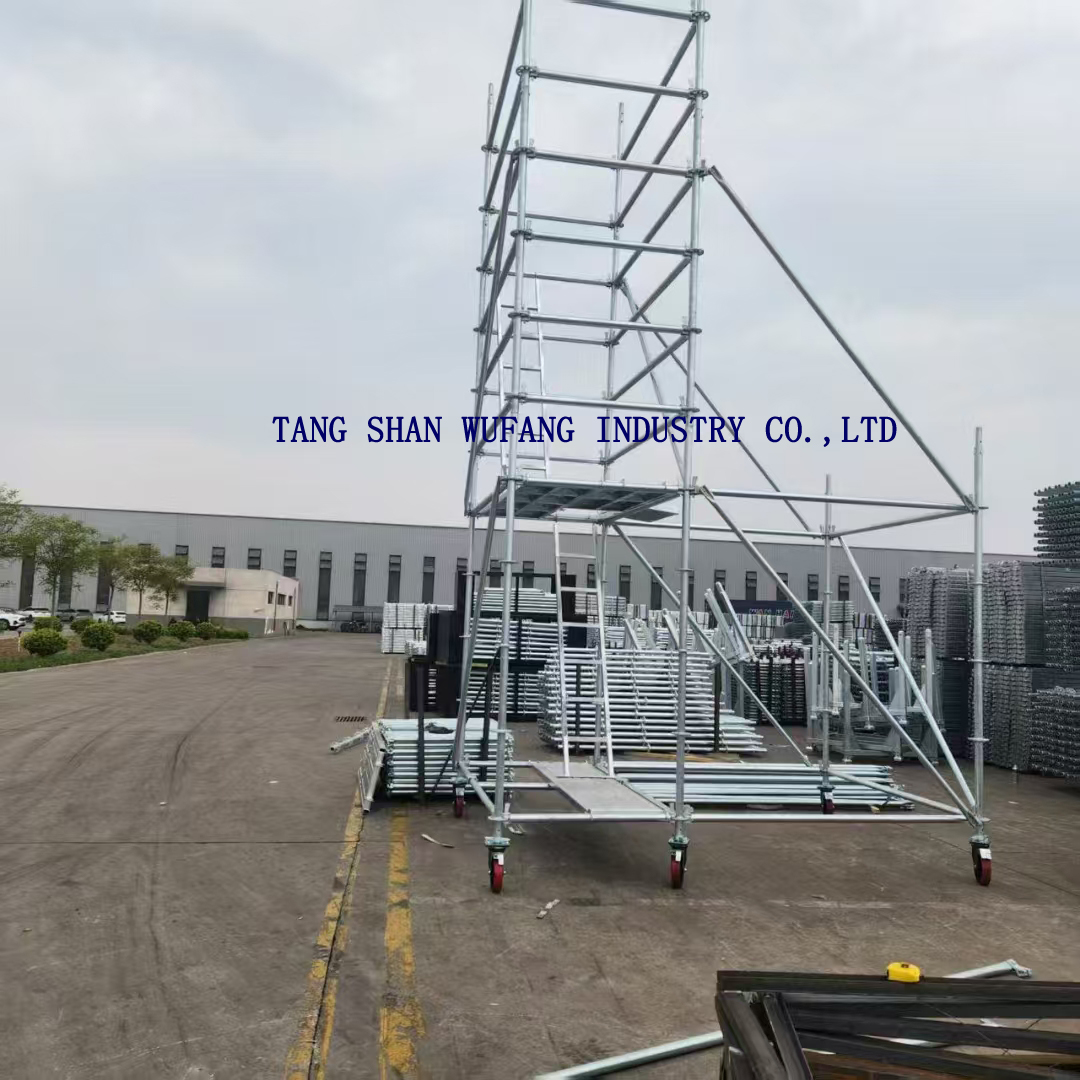

Ringlock Scaffold Walkway Platform with Stair

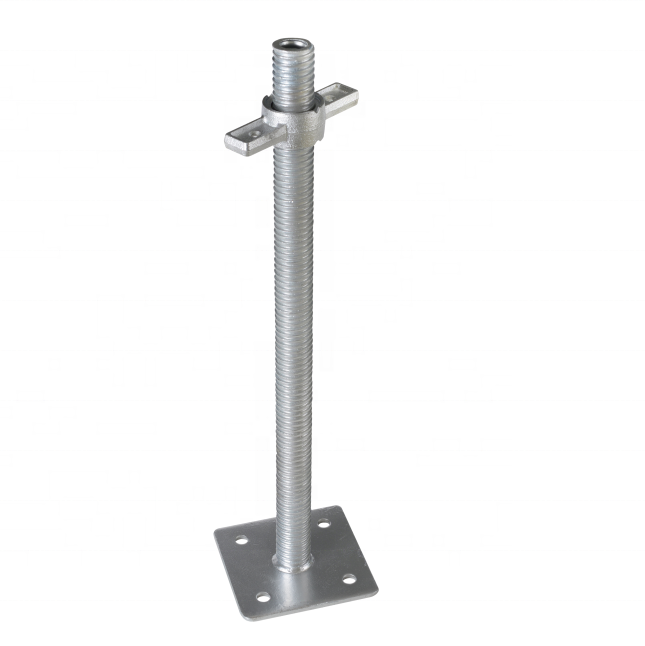

Ringlock support system is a modular scaffold system which is more safe and convenient. it can be divided into 48mm system and 60mm system. Ringlock system is constitute of standard, ledger, diagonal brace, jack base, u head and other components. Standard is welded by rosette with eight hole that four small holes to connect ledger and another four
big holes to connect diagonal brace.The reasonable design make the system forced by three points that can resist bending and anti-skating.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Ringlock scaffolding system :

Name	48 system (mm)	60 system (mm)	Length (mm)	Picture

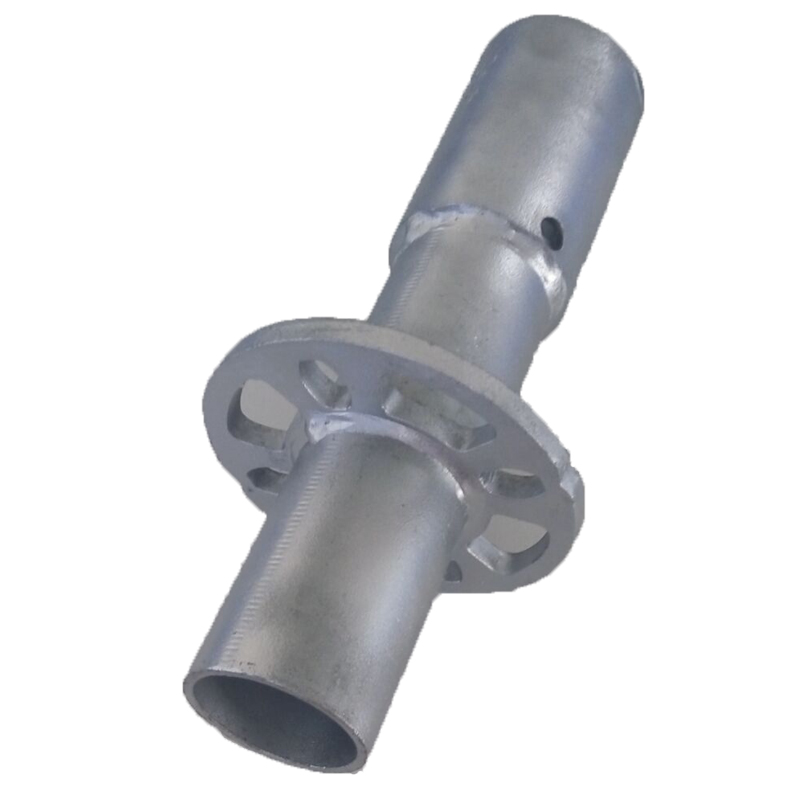

Base Collar Q355B	φ48.3*3.25	φ60.3*3.25	200

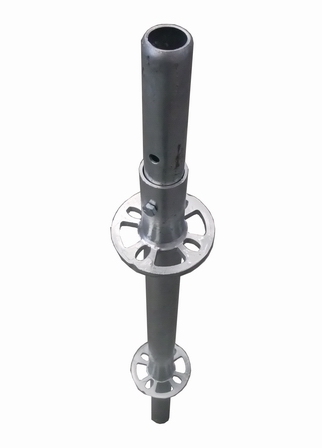

Standard Q355B	φ48.3*3.25	φ60.3*3.25	1000
	48.3*3.25	φ60.3*3.25	1500
	φ48.3*3.25	φ60.3*3.25	2000
	φ48.3*3.25	φ60.3*3.25	2500
	φ48.3*3.25	φ60.3*3.25	3000

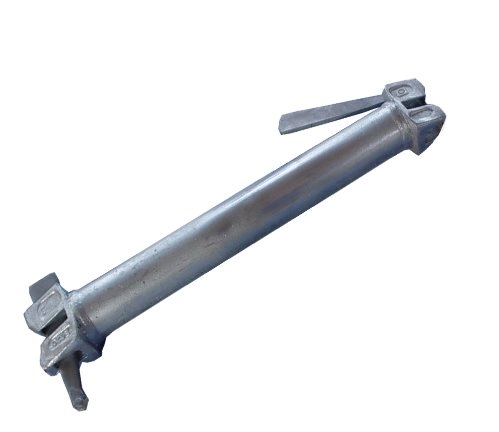

Ledger Q235B	φ48.3*2.75	48.3*2.75	600
	φ48.3*2.75	φ48.3*2.75	900
	φ48.3*2.75	48.3*2.75	1200
	φ48.3*2.75	φ48.3*2.75	1500
	φ48.3*2.75	φ48.3*2.75	1800
	φ48.3*2.75	φ48.3*2.75	2100

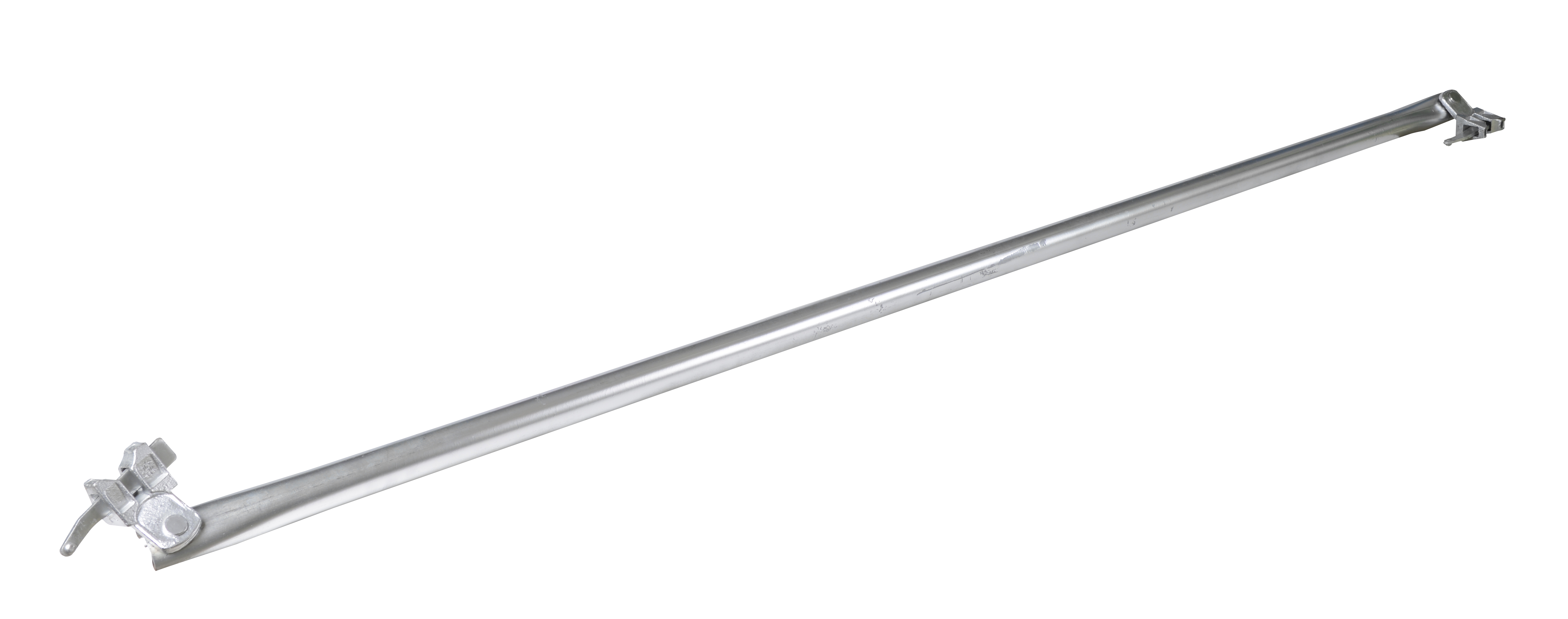

Diagonal Brace Q235B	φ48.3*2.75	φ48.3*2.75	600*1500
	φ48.3*2.75	φ48.3*2.75	900*1500
	φ48.3*2.75	φ48.3*2.75	1200*1500
	φ48.3*2.75	φ48.3*2.75	1500*1500
	φ48.3*2.75	φ48.3*2.75	1800*1500
	48.3*2.75	φ48.3*2.75	2100*1500
