Steel Andamios Layher Ringlock Scaffold for Support Construction

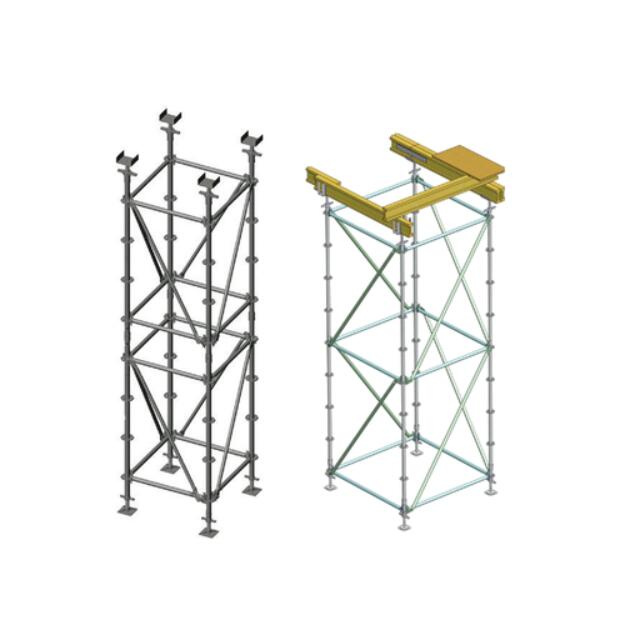

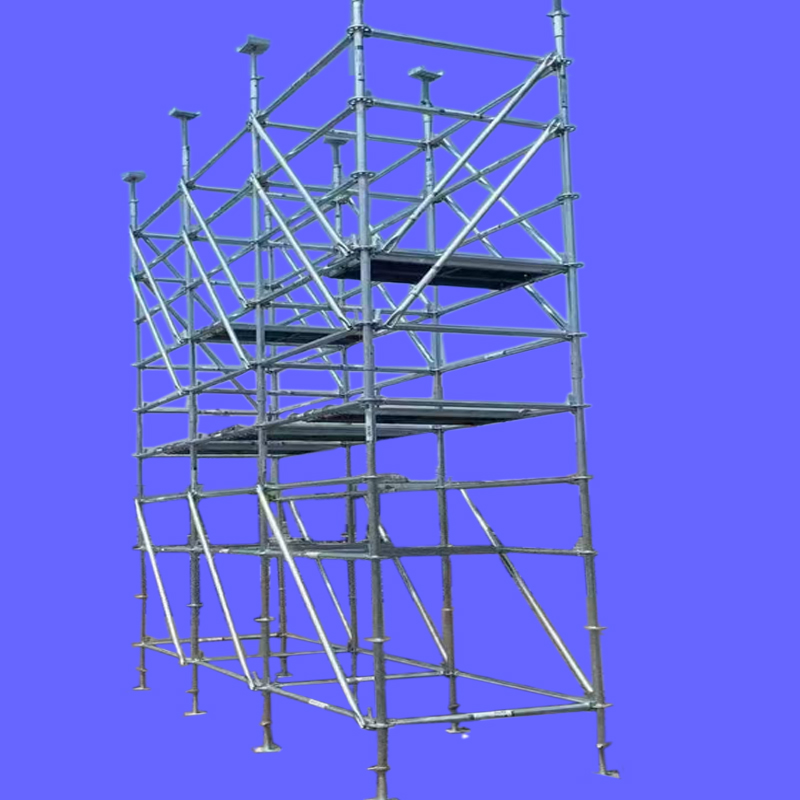

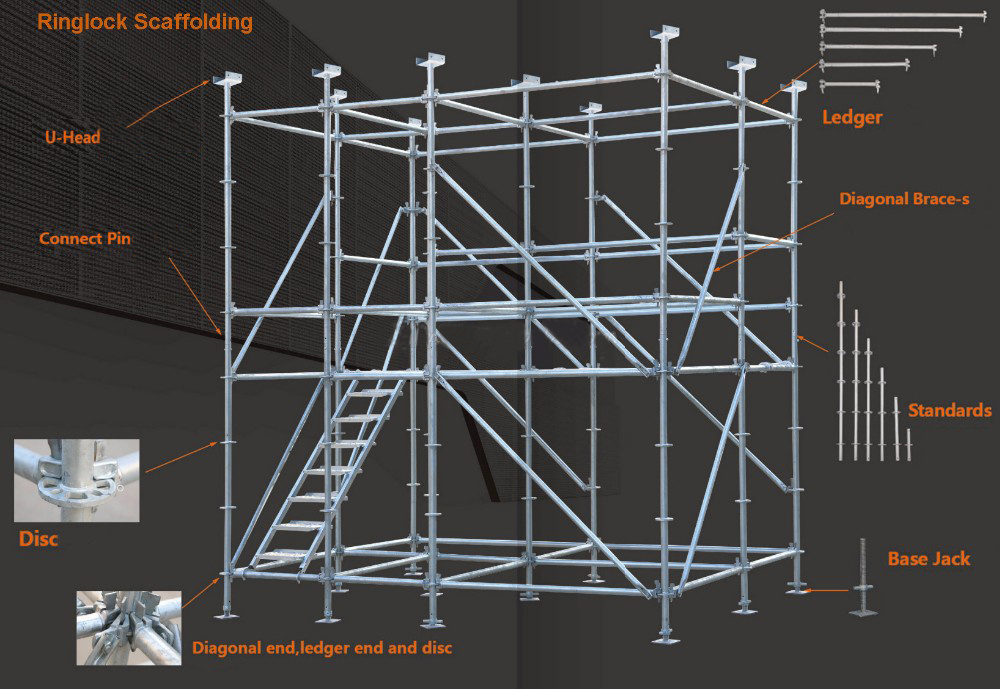

Ringlock support system is a modular scaffold system which is more safe and convenient. it can be divided into 48mm system and 60mm system. Ringlock system is constitute of standard, ledger, diagonal brace, jack base, u head and other components. Standard is welded by rosette with eight hole that four small holes to connect ledger and another four
big holes to connect diagonal brace.The reasonable design make the system forced by three points that can resist bending and anti-skating.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Ringlock Scaffolding Vertical Standard with/without Spigot

(Q355B Steel Tubes OD48.3 x 3.2mm)


Code

Item

Length

87969359476725bd1abc0bcece8e56c

WF-RV001

1'8" Standard (1 Ring) 0.5M

0.5M

1'8"

WF-RV002

3'3" Standard (2 Ring) 1.0M

1.0M

3'3"

WF-RV003

4'11" Standard (3 Ring) 1.5M

1.5M

4'11"

WF-RV004

6'6" Standard (4 Ring) 2.0M

2.0M

6'7"

WF-RV005

8'2" Standard (5 Ring) 2.5M

2.5M

8'2"

WF-RV006

9'9" Standard (6 Ring) 3.0M

3.0M

9'10"

Ringlock Scaffolding Horizontal Ledger

Q355B/Q235B Steel Tube OD48.3 x 3.2mm/3.0mm/2.75mm/2.5mm


Code

Item

Length

c7ee9ea16e403a82a9c34b5481b8ea3

WF-RL001

Ringlock Ledger 0.65M

0.65M

2'2"

WF-RL002

Ringlock Ledger 1.07M

1.07M

3'6"

WF-RL003

Ringlock Ledger 1.57M

1.57M

5'2"

WF-RL004

Ringlock Ledger 2.13M

2.13M

7'

WF-RL005

Ringlock Ledger 2.44M

2.44M

8'

WF-RL006

Ringlock Ledger 3.05M

3.05M

10'

Ringlock Scaffolding Diagonal Brace

(Q355B/Q235B OD48.3 x 3.2mm/3.0mm/2.75mm/ 2.5mm Q195B Steel Tube OD42.2 x 2.75mm)


Code

Item

Width (Size A)

Height (Size H)

d972b1546df46a8888b16e88d4e0c51

WF-RD001

Ringlock Brace 0.65x2.0M

0.65M

2.0M

WF-RD002

Ringlock Brace 1.07x2.0M

1.07M

2.0M

WF-RD003

Ringlock Brace 1.57x2.0M

1.57M

2.0M

WF-RD004

Ringlock Brace 2.13x2.0M

2.13M

2.0M

WF-RD005

Ringlock Brace 2.44x2.0M

2.44M

2.0M

WF-RD006

Ringlock Brace 3.05x2.0M

3.05M

2.0M

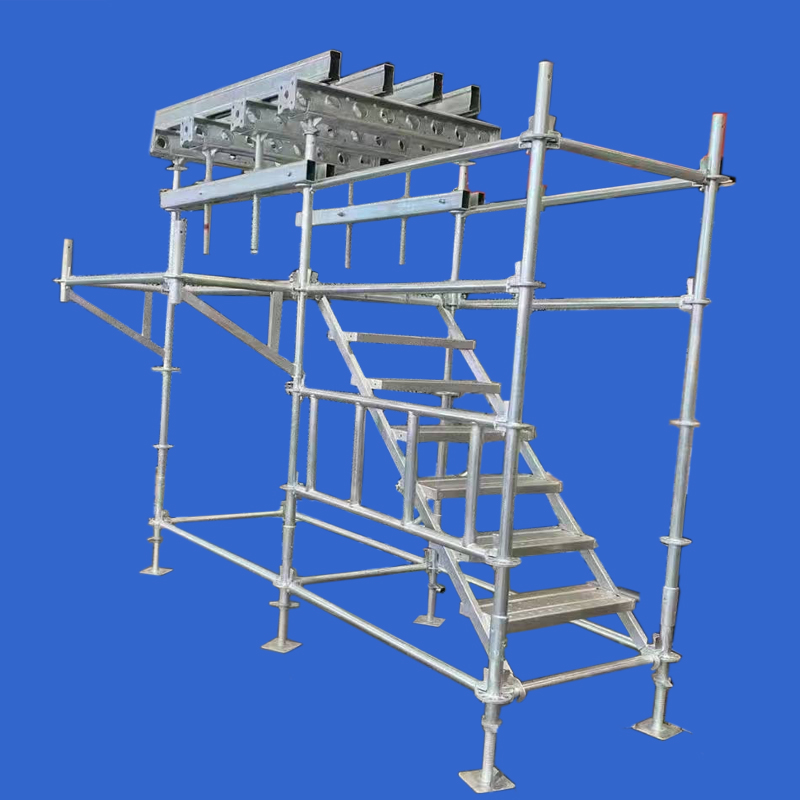

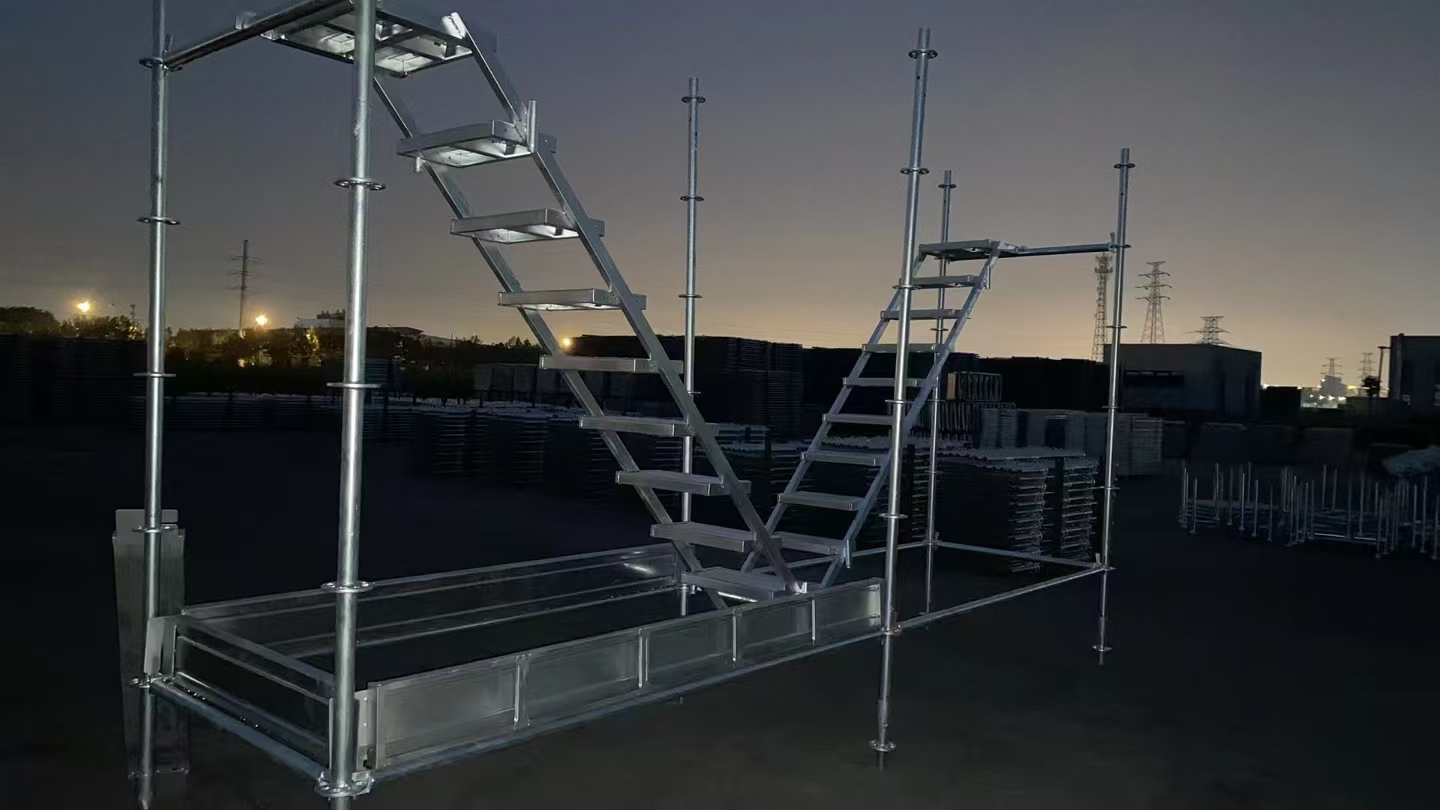

Ringlock relevant parts:joint pin ,base collor , base jack ,u head jack ,middle ledger,double ledger, Reinforced ledger,tripod brace,staircase ,monkey ladder ,ladder beam, truss beam for your choose.

Ringlock scaffolding application :
