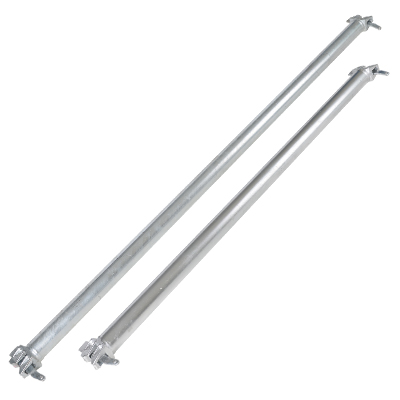

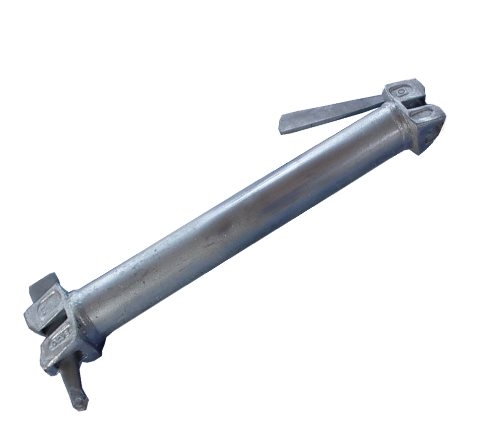

Ringlock scaffolding ledger:

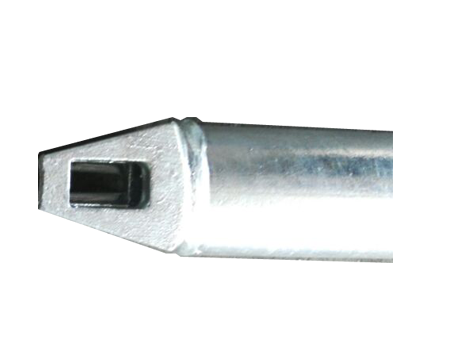

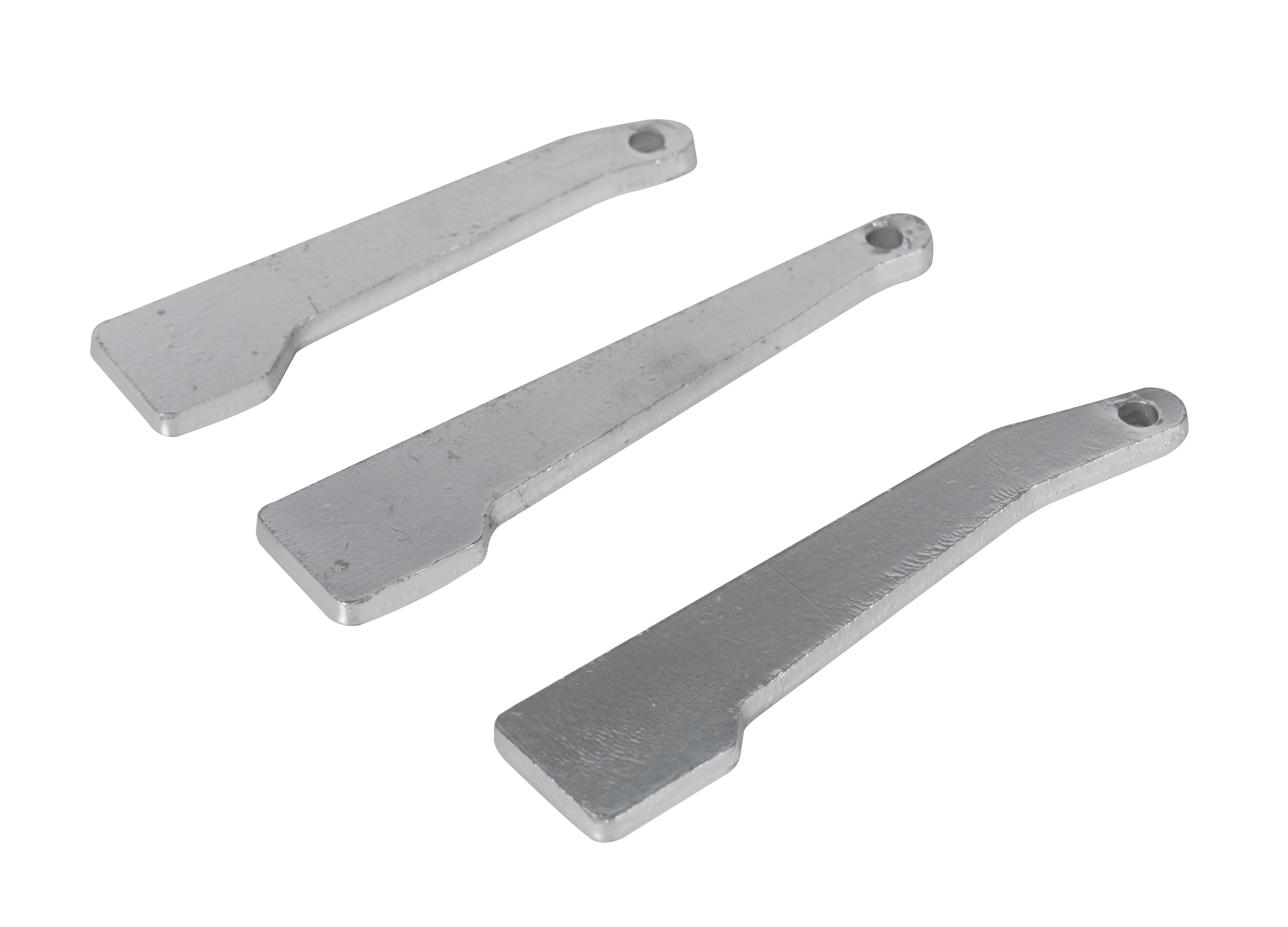

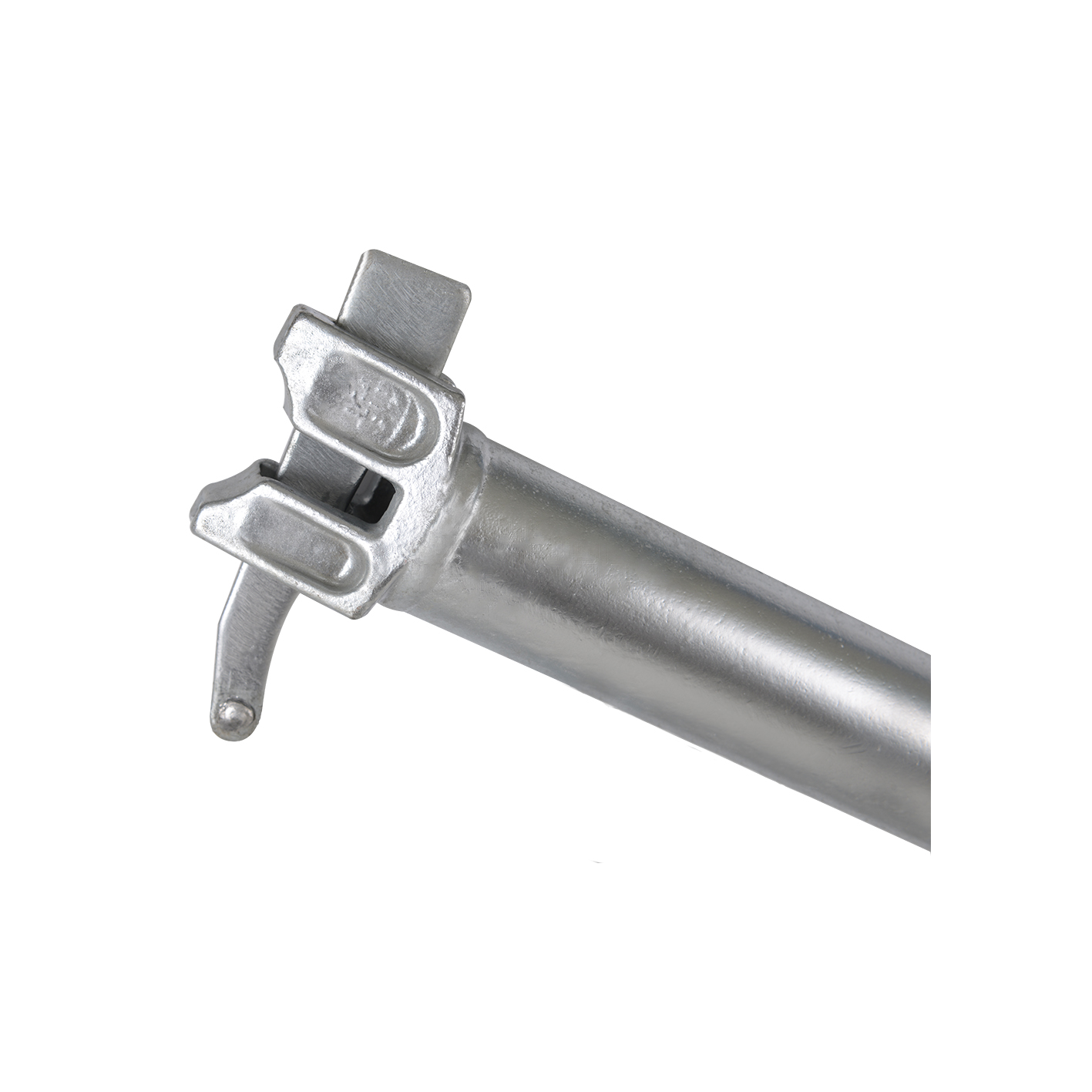

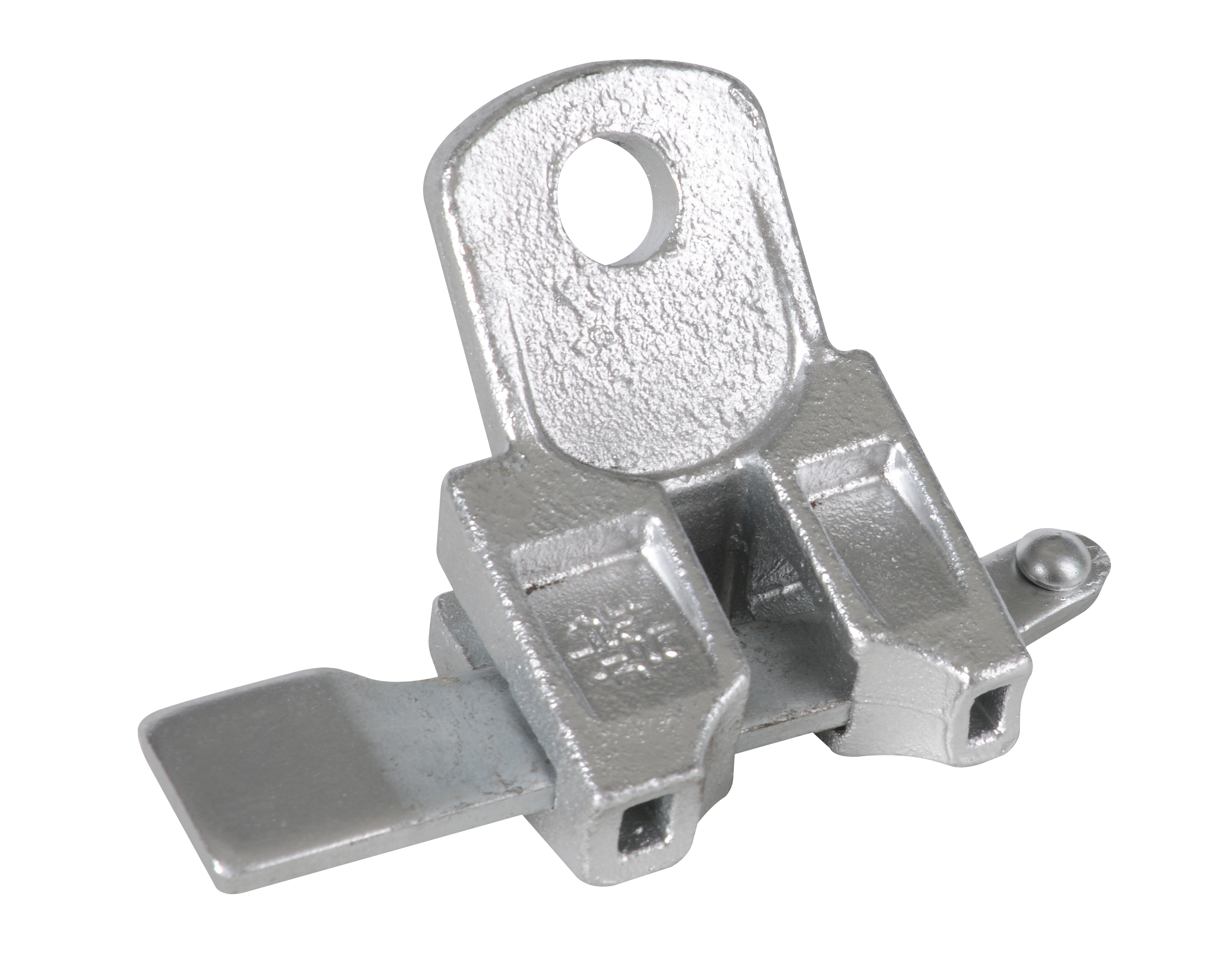

Ringlock ledgers are manufactured by OD48.3mm standard scaffolding pipes . At both ends of the scaffold tube welded with two cast steel ledger ends. There is a slot on each of the cast steel ledger end. The slot is used to insert ringlock wedge pins. Ringlock scaffold wedge pins are manufactured from high-strength steel plates. It is fixed inside of the ledger end slot by a rivet.
| Quantity: | |
|---|---|
Ringlock scaffolding ledger:
Ringlock ledgers are manufactured by OD48.3mm standard scaffolding pipes . At both ends of the scaffold tube welded with two cast steel ledger ends. There is a slot on each of the cast steel ledger end. The slot is used to insert ringlock wedge pins. Ringlock scaffold wedge pins are manufactured from high-strength steel plates. It is fixed inside of the ledger end slot by a rivet.
Specifications:
1.Material :Q235
2.Ledger tube diameter:48.3mm
3.Wall thickness:2.75mm
4.Surface treatment : hot-dip galvanizing
5.Package:Steel pallets
6.Construction application:All types:
concrete shoring,building ,industrial ,civil ,commercial ,shipuilding,marine,etc
Ringlock scaffolding ledger:
Ringlock ledgers are manufactured by OD48.3mm standard scaffolding pipes . At both ends of the scaffold tube welded with two cast steel ledger ends. There is a slot on each of the cast steel ledger end. The slot is used to insert ringlock wedge pins. Ringlock scaffold wedge pins are manufactured from high-strength steel plates. It is fixed inside of the ledger end slot by a rivet.
Specifications:
1.Material :Q235
2.Ledger tube diameter:48.3mm
3.Wall thickness:2.75mm
4.Surface treatment : hot-dip galvanizing
5.Package:Steel pallets
6.Construction application:All types:
concrete shoring,building ,industrial ,civil ,commercial ,shipuilding,marine,etc
