The advance of Ringlock scaffolding system

1. Safety. More safe and stable than other scaffolding systems due to the the reasonable joint design and advanced manufacturing technology.

2. Low cost, high efficiency. With reduced components and simple design, ringlock system can be assembled and dismantled very easily and quickly, can be 2-3 times faster than a traditional one, thus greatly reducing the time and labor cost.

3. High bearing capacity. Made of high-strength Q3455B welded pipe, ringlock scaffolding has a higher bearing capacity and rigidity, which ensures the workers' safety.

4. Long lifespan. Ringlock scaffolding are protected against corrosion by hot-dip galvanized, this excellent surface finish extend the service life to 15-20 years.

5. Less material used. Ringlock scaffolding can reduce 1/3 to 1/2 materials compared to conventional scaffolding system.

6. Versatile and flexible. A wide range of sizes and accessories are available, to offer maximum versatility.

7. Simple transport, storage and maintenance. No loose parts, save the use of couplers to avoid the lost and missing of components.

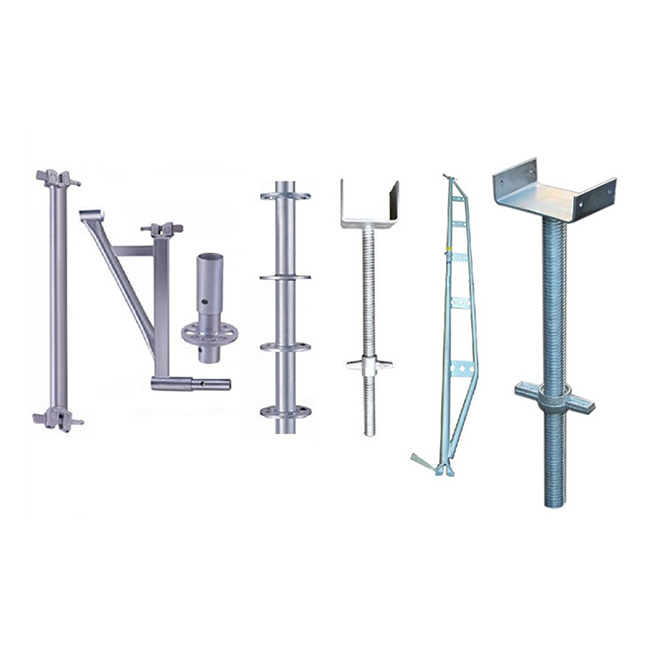

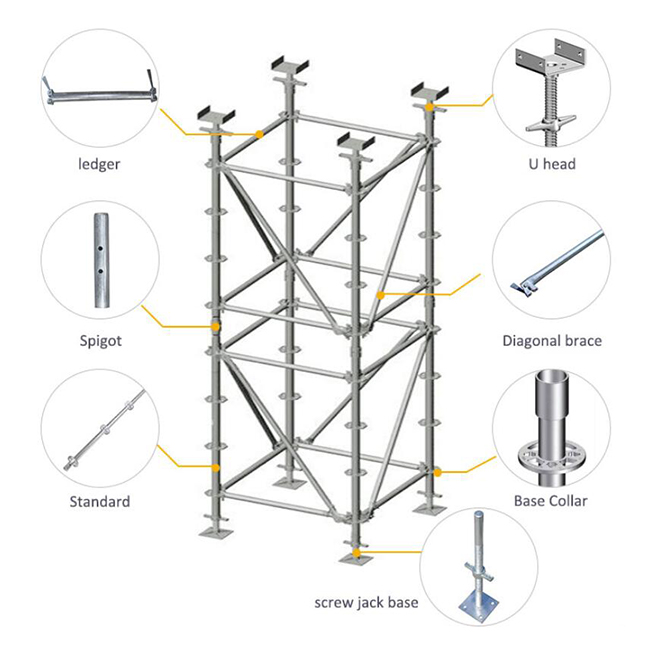

1.  The ringlock scaffolding mainly consists of standard or vertical, ledger, diagonal brace, and  components such as base collar, head jack, base jack.

It can be simple and convenient to meet most requirements of temporary structure and access assisted with steel plank and kinds of bracket.

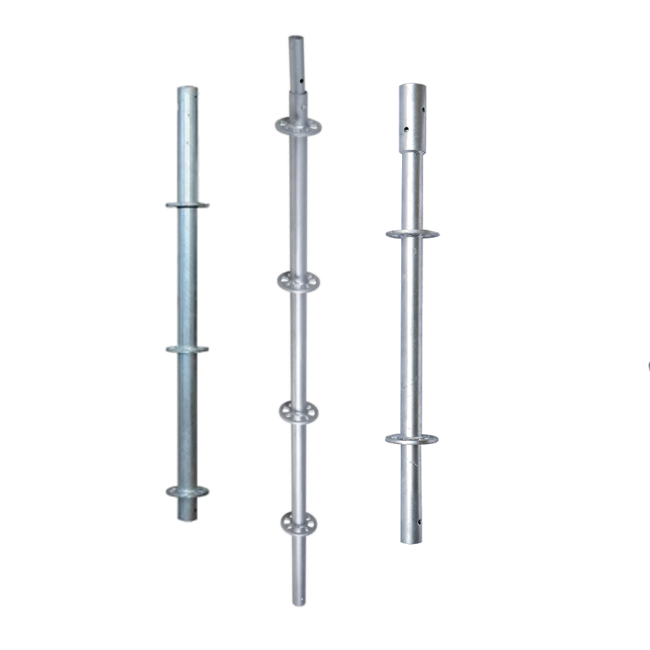

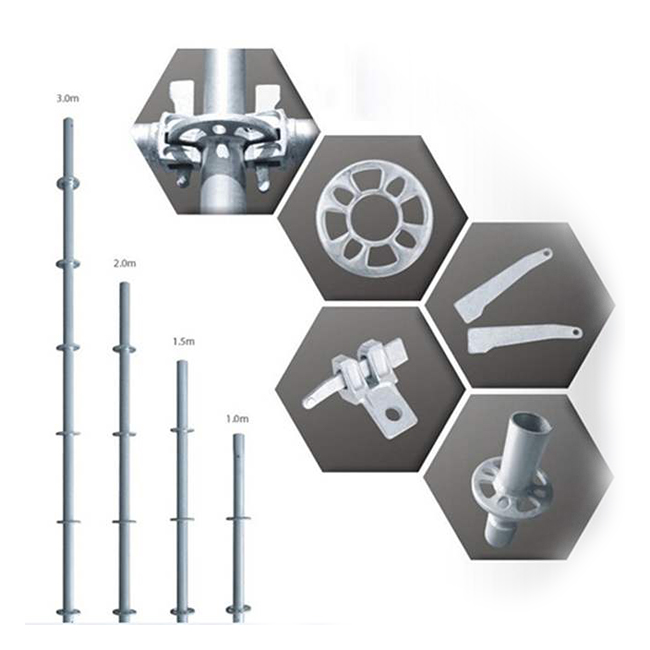

Ringlock scaffolding standards also called vertical standard, vertical post.

Ringlock standard is the primary load bearing component of the scaffolding system. It features a bolted spigot or sleeve tube for connection of other ringlock scaffolding standards.

• Material: Q355B carbon steel welded tube

• Tube size: 48.3x3.2mm; 60.3x3.2mm

• Length: 0.5m, 1.0m, 1.5m, 2.0m, 2.5m, 3.0m

• Surface treatment: Hot-dip galvanized.

• Connent type: with spigot, with sleeve

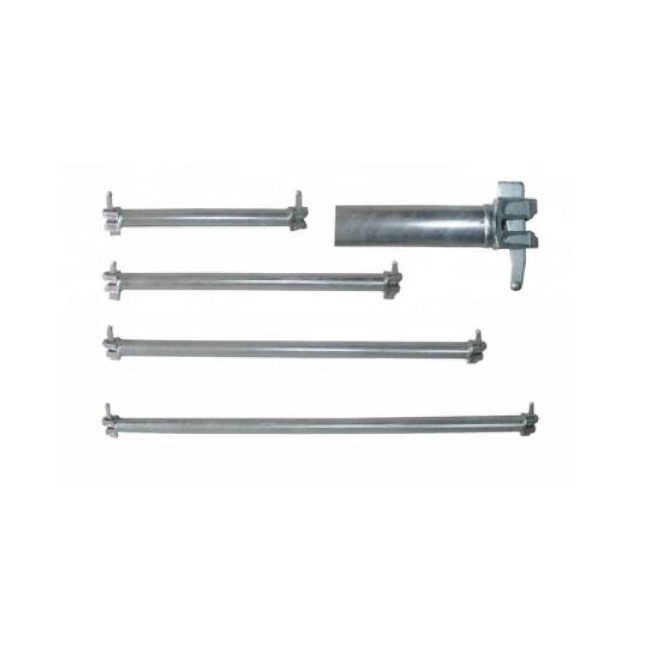

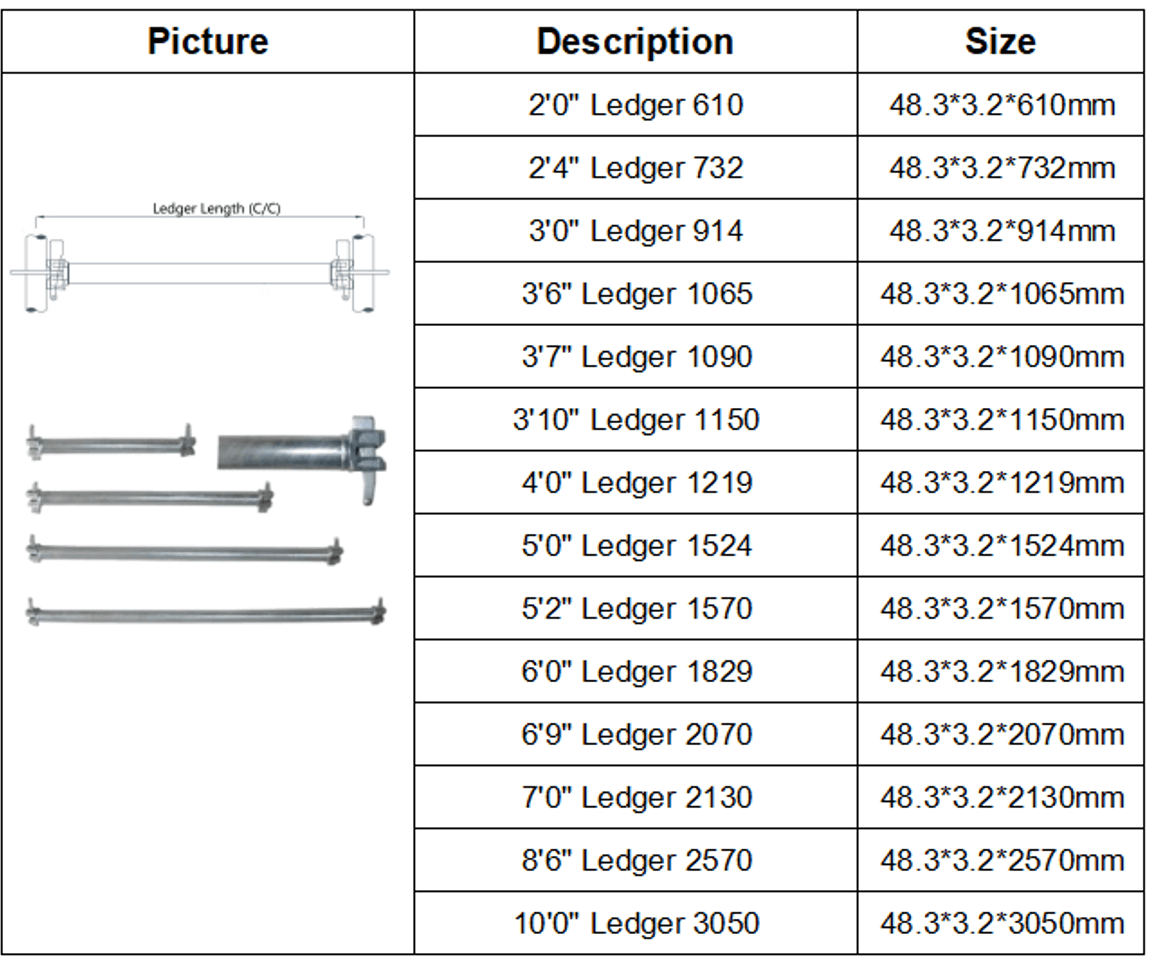

2.  Ringlock scaffolding horizontal ledgers are the horizontal members which connect to the standards. They are used for supporting planks and other loads. Ledgers are also used as guard-rails for safety purposes. These also come in a variety of sizes, to suit each situation.

• Material: Q235B or Q355B carbon steel welded tube

• Tube Size: 48.3x3.2mm, 48.3x3.0mm, 48.3x2.75mm or 48.3x2.5mm

• Length: 600mm, 732mm, 900mm, 914mm, 1090mm, 1200mm, 1500mm, 1570mm, 2070mm, 2570mm, 3070mm, etc.

• Surface Treatment: Hot-dip Galvanized.

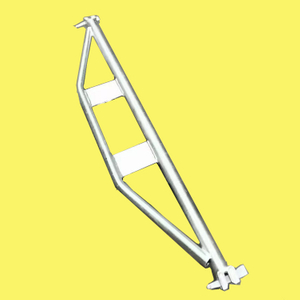

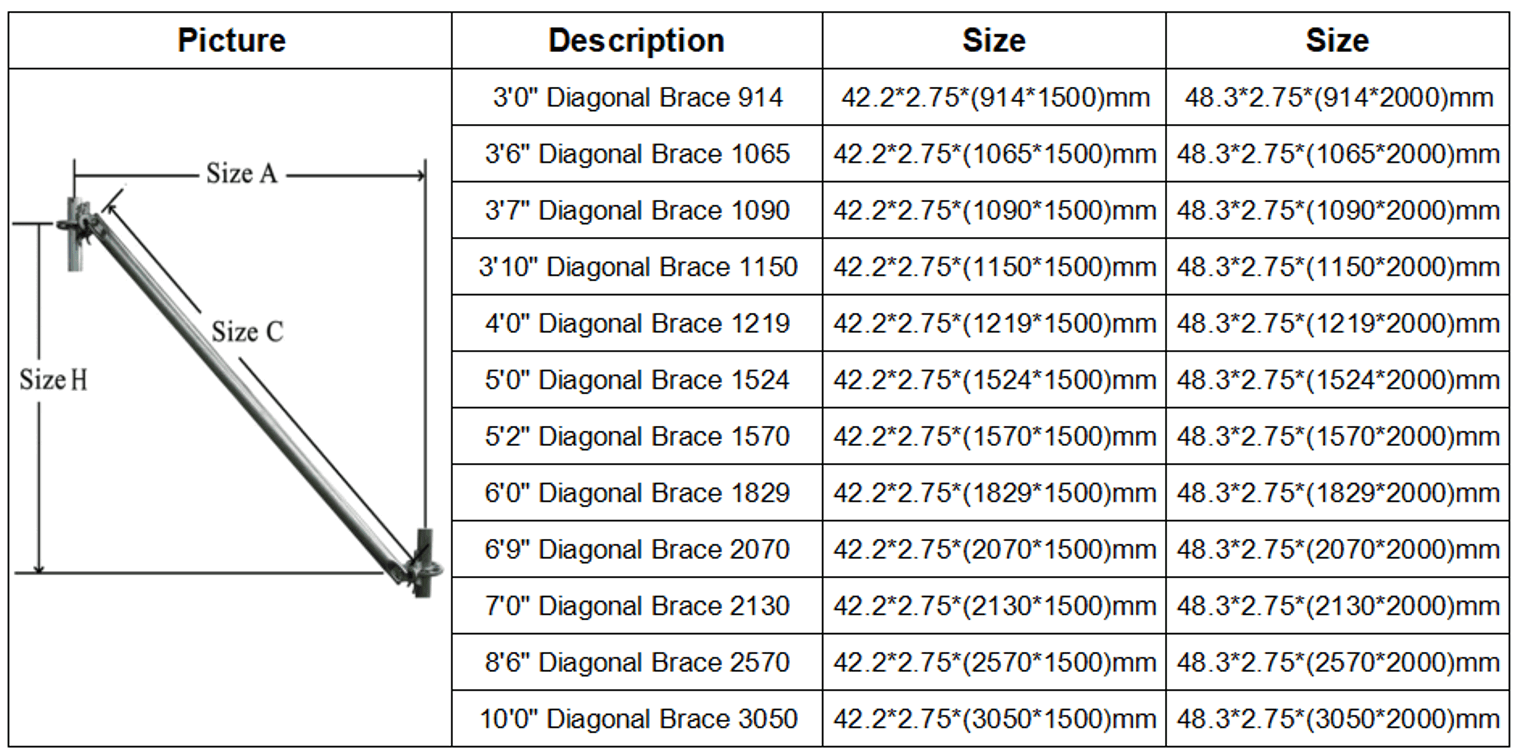

3.  Ringlock scaffolding diagonal brace also called bay brace. The diagonal brace serves to give lateral support to the scaffolding system. Diagonal braces can also be used to cantilever or spur scaffold over openings or other structures.

• Material: Q195 or Q235B carbon steel tube

• Tube Size: 42.2x2.75mm, 48.3x2.5mm, 48.3x2.75mm, 48.3x3.0mm.

• Length: 610x2000mm, 914x2000mm, 1200x2000mm, 1500x2000mm, 2070x2000mm, 2570x2000mm, 3070x2000mm, etc.

• Surface Treatment: Hot-dip Galvanized.
