High Tensile Factory Price Andamios Tubulares 5x5 Ladder Frame Scaffolding

You are here: Home » Products » Frame Scaffolding » High Tensile Factory Price Andamios Tubulares 5x5 Ladder Frame Scaffolding

Share to:

High Tensile Factory Price Andamios Tubulares 5x5 Ladder Frame Scaffolding

Frame scaffold, also known as a tubular scaffold or modular scaffold, is a temporary structure used to support workers and materials during construction, decoration, repair, or maintenance projects.

Availability:

Quantity:



Inquire Add to Basket

Model:
Frame Scaffolding
Brand:
WUFANG
Code:
WFFS02

Overview

Key attributes

Industry-specific attributes

Warranty

1 Year

After-sale Service

Online technical support, NONE

Project Solution Capability

graphic design, total solution for projects

Application

construction projects

Design Style

construction facade

Other attributes

Place of Origin

Hebei, China

Brand Name

WUFANG

Product name

Frame Scaffolding System

Material

Q195, Q235 Steel Pipe

Surface treatment

pre-galvanized, HDG, powder coated

Type

main frame, h frame, ladder frame

Width

610mm, 914mm, 1219mm, 1500mm

Height

914mm, 1219mm, 1524mm, 1700mm, 1930mm, 2000mm

Tube diameter

42mm, 48mm, etc

Component

cross brace, joint pin, catwalk, base jack, etc

Packing

Bundle, bulk

MOQ

500pcs

Supply Ability

20000 Piece/Pieces per Month

Product details

Product Specifications

Product Name	Description	Tube Size	Size	Unit Weight
Main Frame Scaffolding	Pre-galvanized	Main tube: 422.2mm Inner Tube: 251.5mm	1219*1930mm	15.24 kg/pc
			1219*1700mm	13.75 kg/pc
			1219*1524mm	12.44 kg/pc
H Frame Scaffolding	Pre-galvanized	Main tube: 422.2mm Inner Tube: 251.5mm	1219*1930mm	16.05 kg/pc
			1219*1700mm	14.21 kg/pc
			1219*1524mm	12.74 kg/pc
Cross Brace	Pre-galvanized	21.3*1.4mm	182912192198mm	3.08 kg/pc
			18299142045mm	2.87 kg/pc
			121912191724mm	2.43 kg/pc
Joint Pin	Pre-galvanized	361.5225mm		0.34 kg/pc
		361.2225mm		0.29 kg/pc
		361.0225mm		0.25 kg/pc

Product Details

Advantages of Frame Scaffolding 1.Easily assembled

High Load Capacity
High-strength steel tubing
Safe, efficient and dependable
Fast erection and dismantling

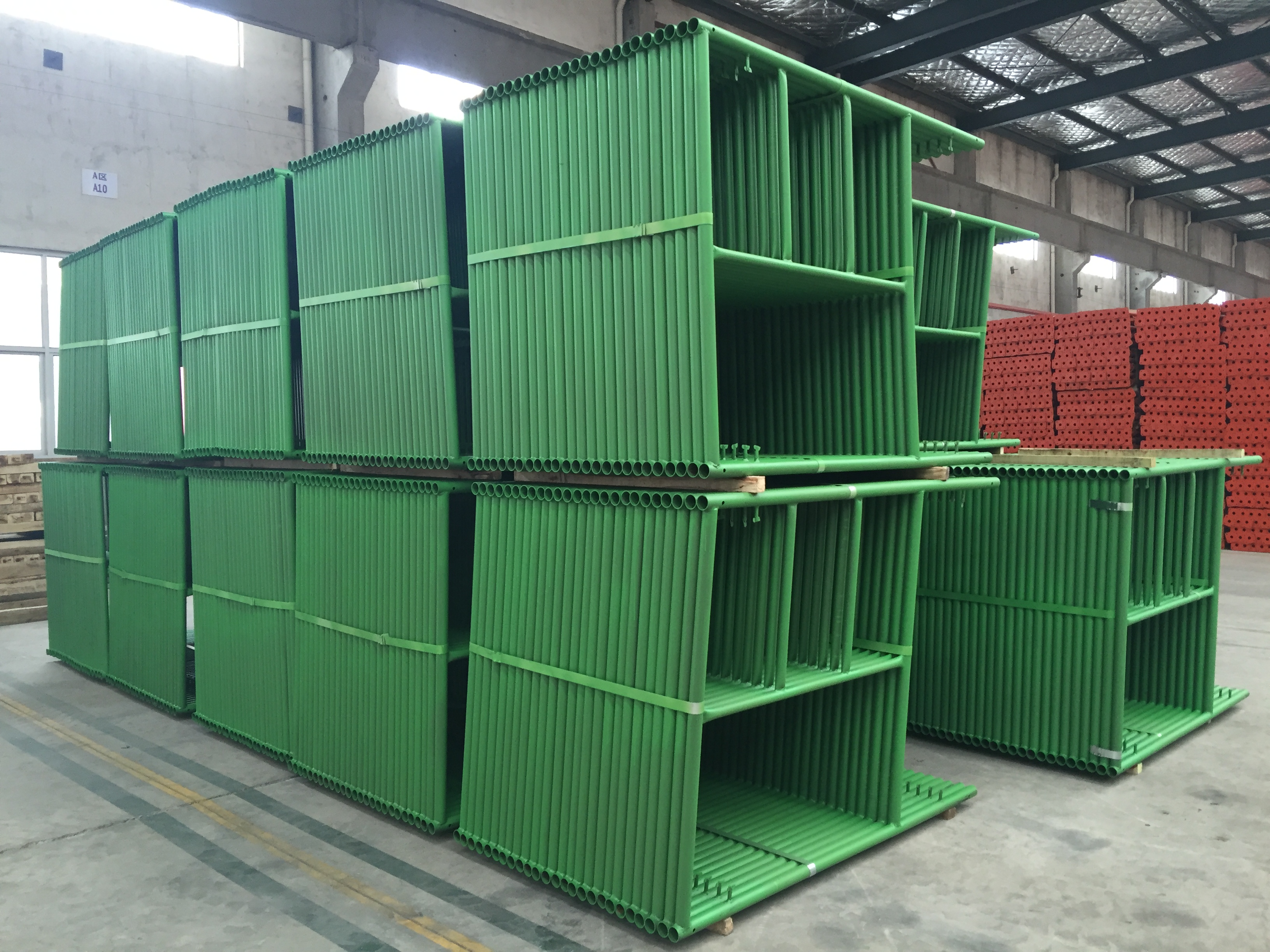

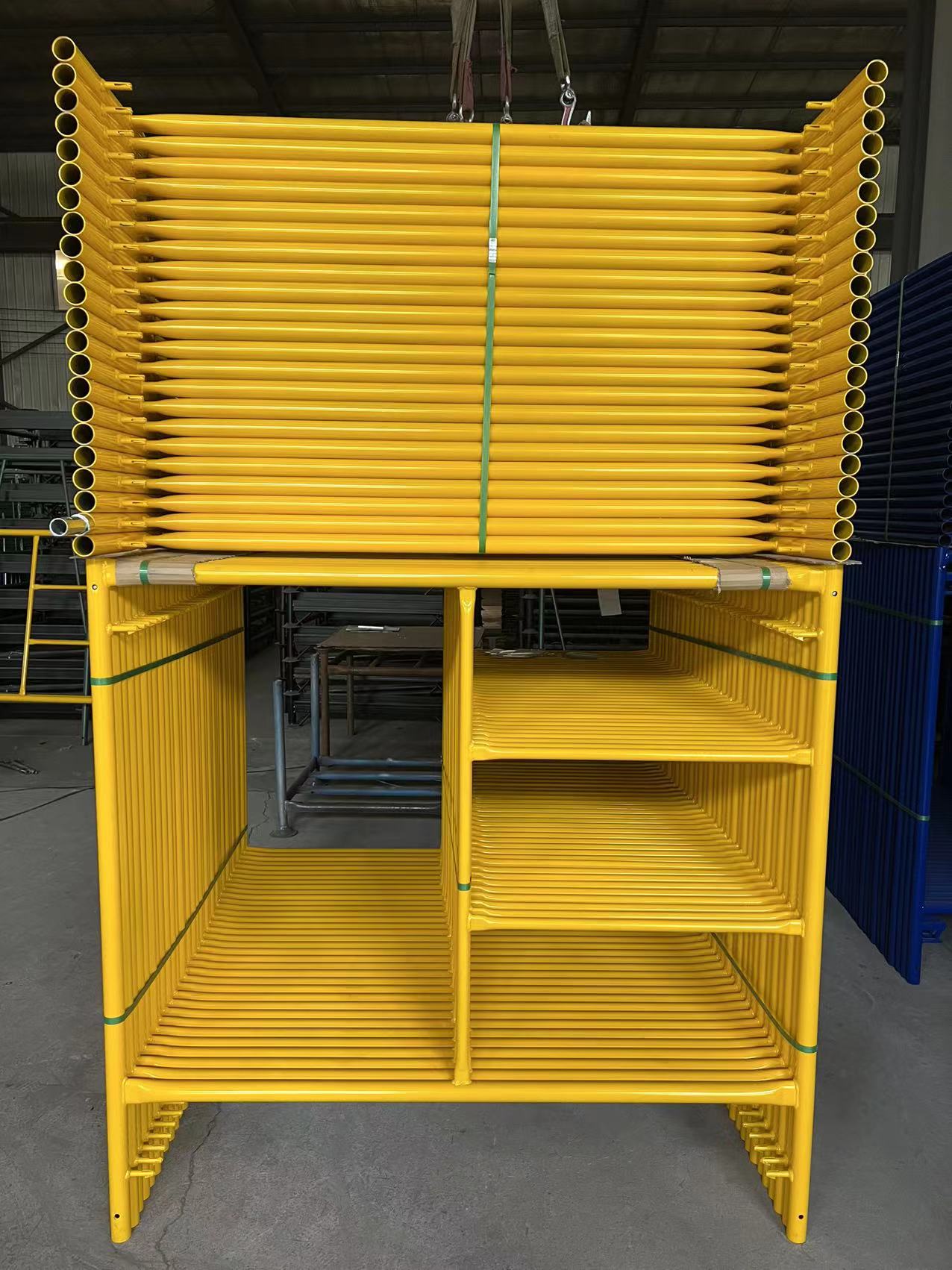

Product Packing & Loading

Applications

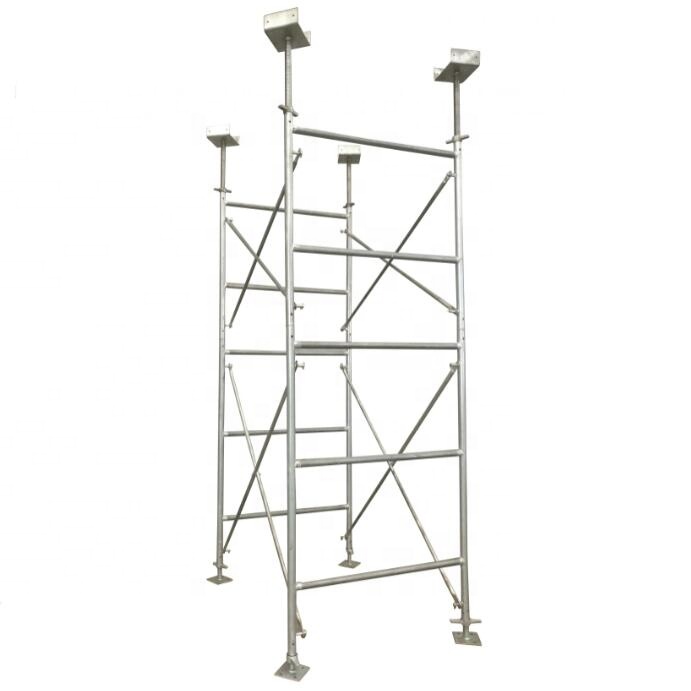

 * The frame system is suited for formwork props in building, halls, bridges, viaducts and tunnels, or as the main shoring frame for flying forms.
 * Scaffolding frame systems can be used as the pipe scaffolding for high-rise buildings.
 * The frame system can be used as the flexible working platform for electro mechanical installation, ship hull construction and repairs, etc.


Company Profile

 Tangshan Wufang Industry Co., Ltd, with an investment of U.S. Dollars of 8 million, is a professional manufacturer engaged in the design, production & sale of scaffolding systems.

Location: Tangshan Wufang is leading scaffolding manufacturer, located in Tangshan, Hebei Province, the raw material basement.
Team: We have professional team for sale, project design and construction.
Main products: Ringlock Scaffolding, Frame Scaffolding, Steel Plank, Catwalk, Ladders, Pipe & Clamp, Steel Prop, etc.
Production capacity: 7000-10000 Tons/month.
Loading capacity: 8-12 containers/day.
Delivery time: 10-15 days for 3-5 containers.
Fast delivery to satisfy your urgent project demand.

Our Team & Customer

High Tensile Frame Scaffolding Hight Tensile Ladder Frame Scaffolding Hight Tensile Main Frame Scaffolding Hight Tensile Brazil Ladder Frame Scaffolding Q195 Ladder Frame Scaffolding Q195 Main Frame Scaffolding Galvanized Main Frame Scaffolding Galvanized Ladder Frame Scaffolding Powder Coated Frame Scaffolding Powder Coated Ladder Frame Scaffolding

Scaffolding Frame
Name	Size (mm)	Width x Height (mm)	Picture
Main frame Pre-galvanized or Powder Coated	Main tube: φ42(1.8/2.0/2.2) Inner tube: φ251.5 Or as per required	1219*1524
		1219*1700
		1219*1930
		1520*2000
		914*1700
		914*1930
H frame Pre-galvanized or Powder Coated	Main tube: φ42(1.8/2.0/2.2) Inner tube: φ25(1.5/1.8/2.0) Or as per required	1219*1524
		1219*1700
		1219*1930
		1520*2000
		914*1700
		914*1930

Cross Brace
Name	Size (mm)	Size (mm)	Picture
Cross Brace Pre-galvanized	φ21.31.0 φ21.31.2 φ21.3*1.4 Or as per required	182912192198
		18299142045
		18296101928
		121912191724
		12196101363

Joint Pin
Name	Size (mm)	Length (mm)	Picture
Joint Pin Pre-galvanized	φ35*1.5	225
	φ36*1.2	225
	φ36*1.5	225

Scaffolding Frame
Name	Size (mm)	Width x Height (mm)	Picture
Main frame Pre-galvanized or Powder Coated	Main tube: φ42(1.8/2.0/2.2) Inner tube: φ251.5 Or as per required	1219*1524
		1219*1700
		1219*1930
		1520*2000
		914*1700
		914*1930
H frame Pre-galvanized or Powder Coated	Main tube: φ42(1.8/2.0/2.2) Inner tube: φ25(1.5/1.8/2.0) Or as per required	1219*1524
		1219*1700
		1219*1930
		1520*2000
		914*1700
		914*1930

Cross Brace
Name	Size (mm)	Size (mm)	Picture
Cross Brace Pre-galvanized	φ21.31.0 φ21.31.2 φ21.3*1.4 Or as per required	182912192198
		18299142045
		18296101928
		121912191724
		12196101363
