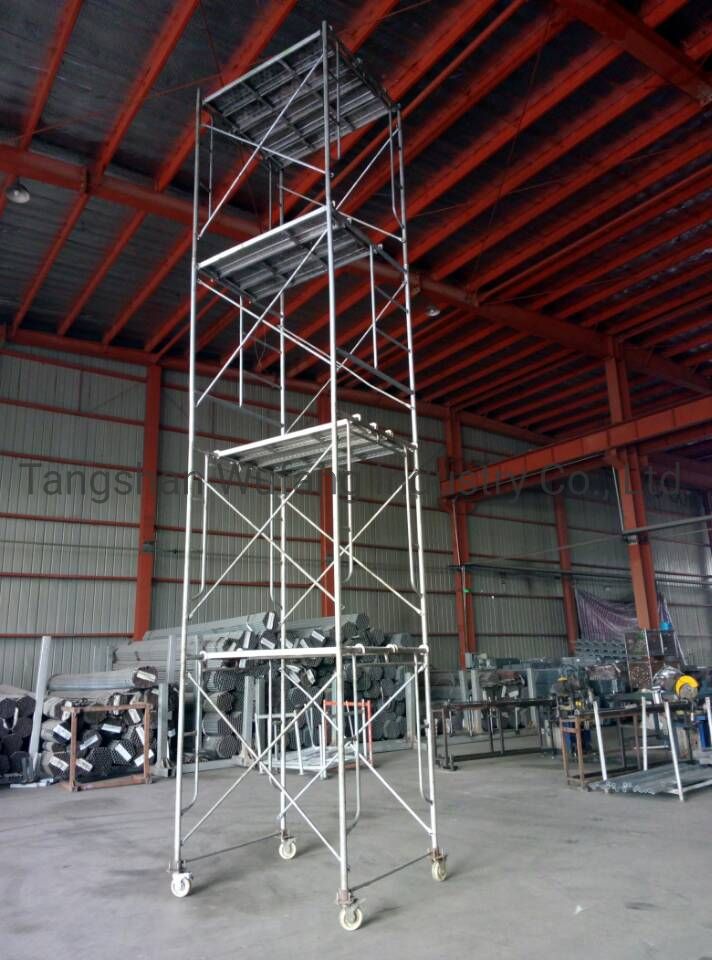

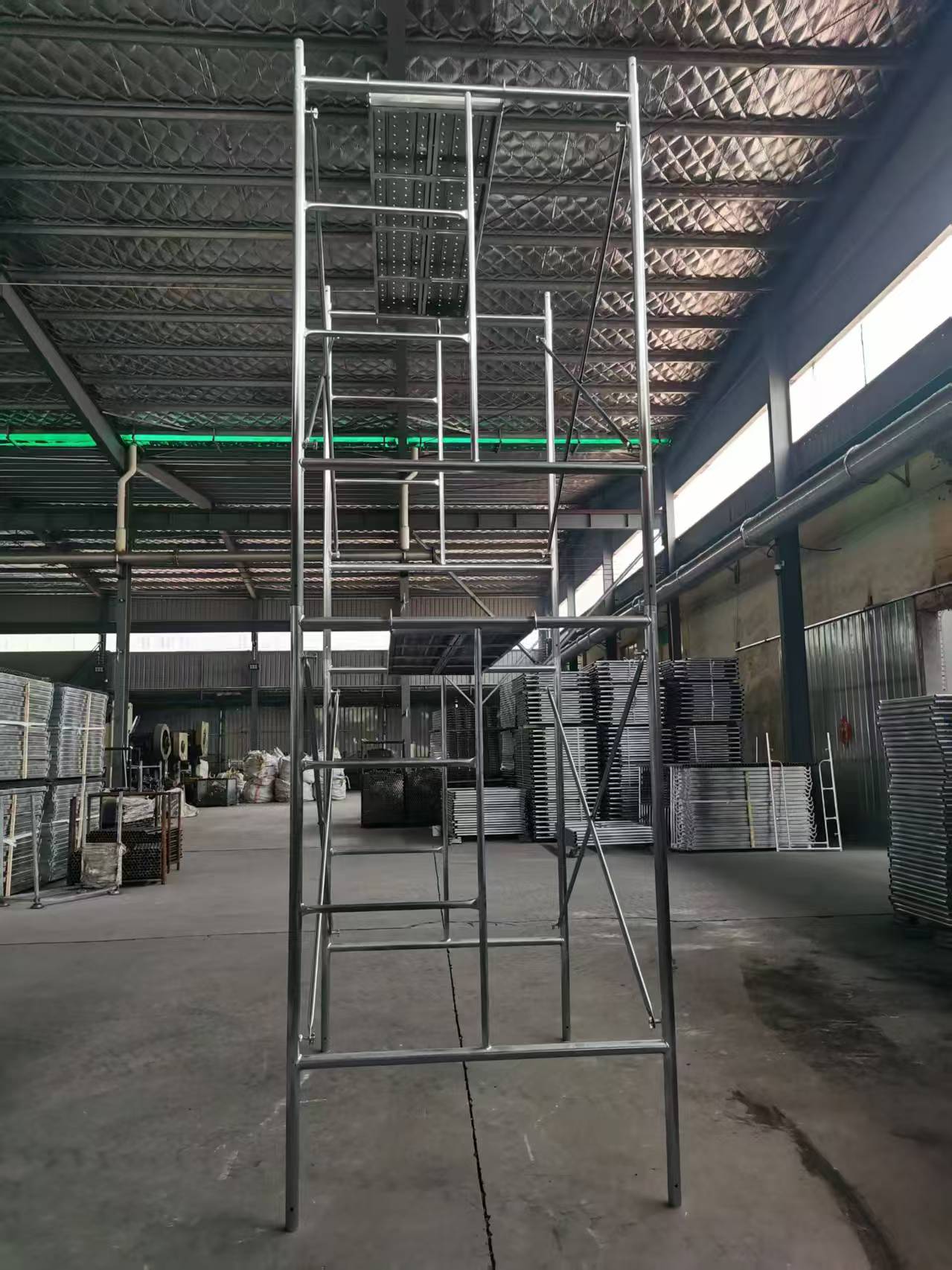

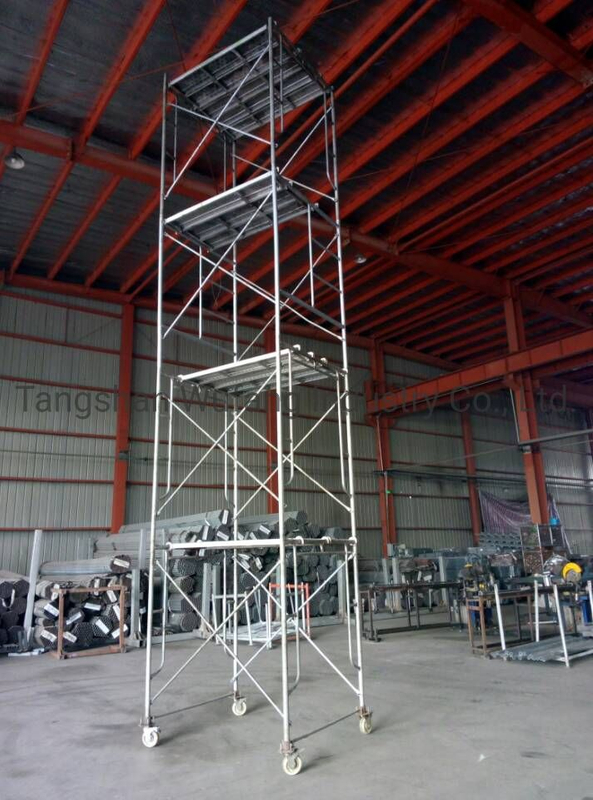

Frame scaffolding is also called tubular steel frame scaffolding, door style frame scaffolding, is a long established modular frame scaffolding system serving as working platform for construction and decoration purposes, which is composed of main frames, catwalk or walk board, braces or cross braces, brackets, coupling pins of spigot, guardrails and sometimes casters, etc.
Name | Size(mm) | Width x Height (mm) | Picture |
Main frame Pre-galvanized | Main tube: φ42*(1.8/2.0/2.2) Inner tube: φ25*1.5 | 1219*1524 |  |
1219*1700 | |||
1219*1930 | |||
914*1524 | |||
914*1700 | |||
914*1930 | |||
H frame Pre-galvanized | Main tube: φ42*(1.8/2.0/2.2) Inner tube: φ25*(1.5/1.8/2.0) | 1219*1524 |  |
1219*1700 | |||
1219*1930 | |||
914*1524 | |||
914*1700 | |||
914*1930 |
Name | Size (mm) | Size (mm) | Picture |
Cross Brace Pre-galvanized |
φ21.3*1.0 φ21.3*1.2 φ21.3*1.4 | 1829*1219*2198 |
|
1829*914*2045 | |||
1829*610*1928 | |||
1219*1219*1724 | |||
1219*610*1363 |
We can customized different size and shape .
Special Type Frame Scaffold:
 |
|
|
 |  |  |
 |  |  |
