Frame Scaffolding
WUFANG
WFFS04

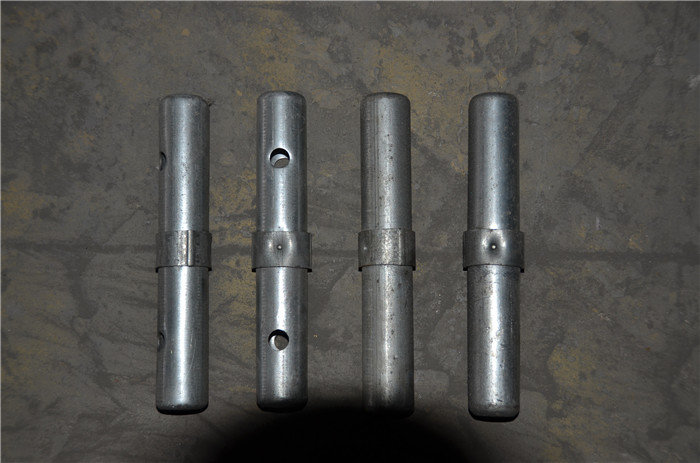

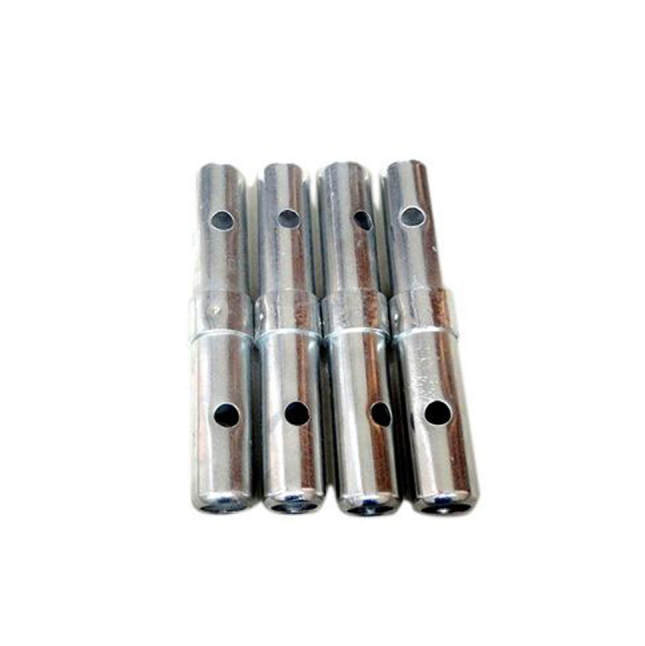

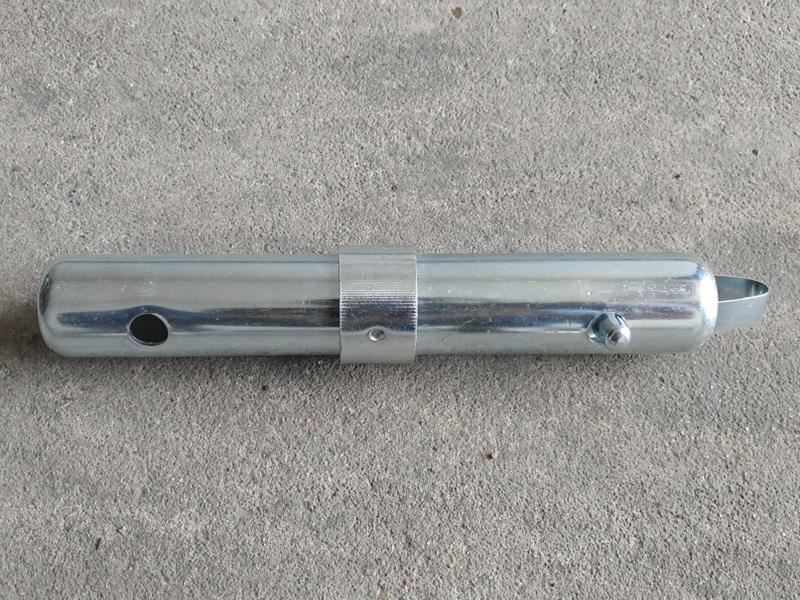

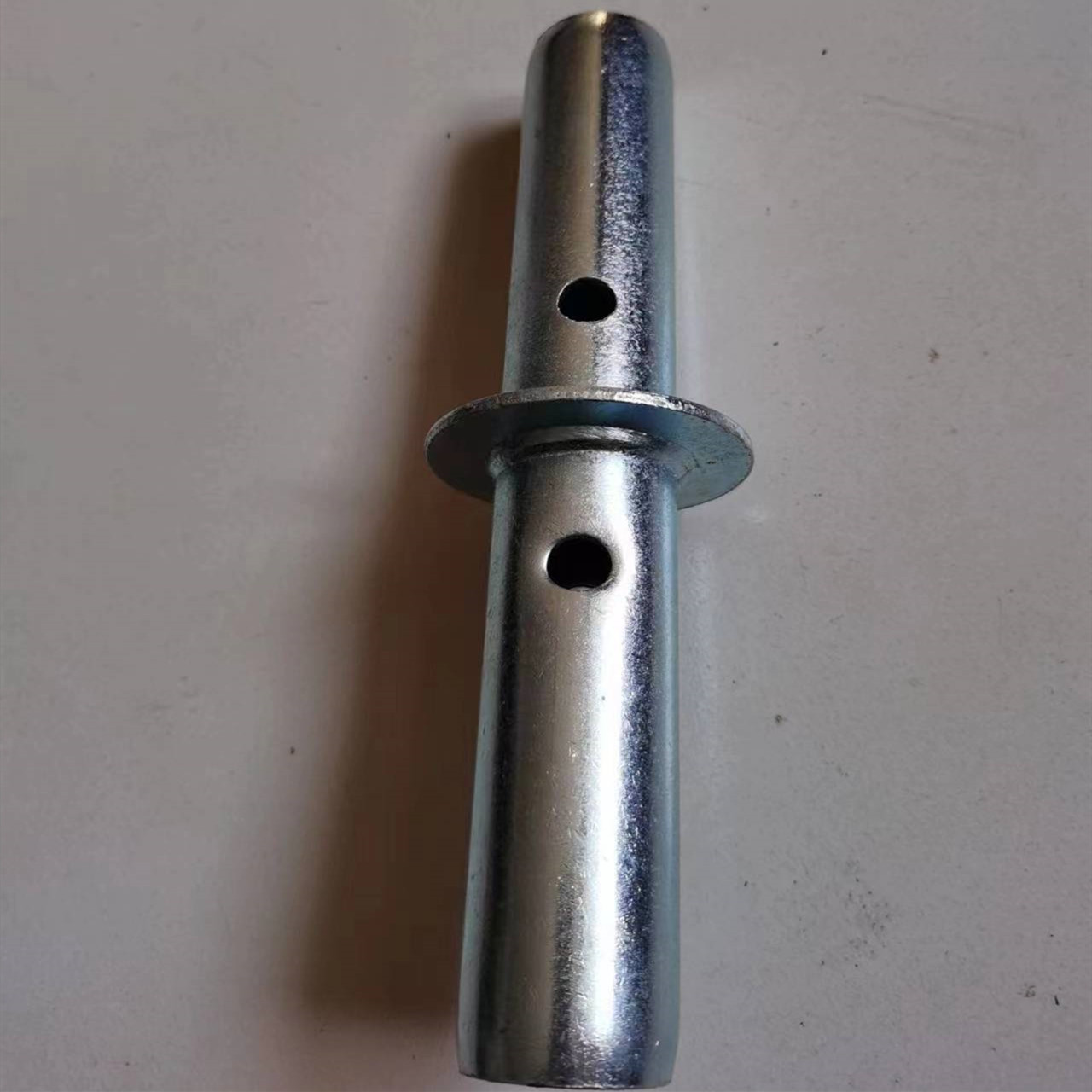

Frame scaffolding joint pin, also known as a coupling pin or toggle pin, is a critical component used to connect and secure the vertical frames of a frame scaffolding system. It is an essential element in ensuring the stability and structural integrity of the scaffold.
The joint pin is typically made of steel and has a cylindrical shape with a solid body and a spring-loaded or captive locking mechanism. One end of the pin is threaded, while the other end has a handle or knob for easy installation and removal.
To assemble the frame scaffold, the joint pin is inserted through the pre-drilled holes located at the ends of the vertical frames. The threaded end of the pin is then tightened securely to create a tight connection between the frames. The pin's locking mechanism engages with the frame, preventing it from loosening or disengaging during use.

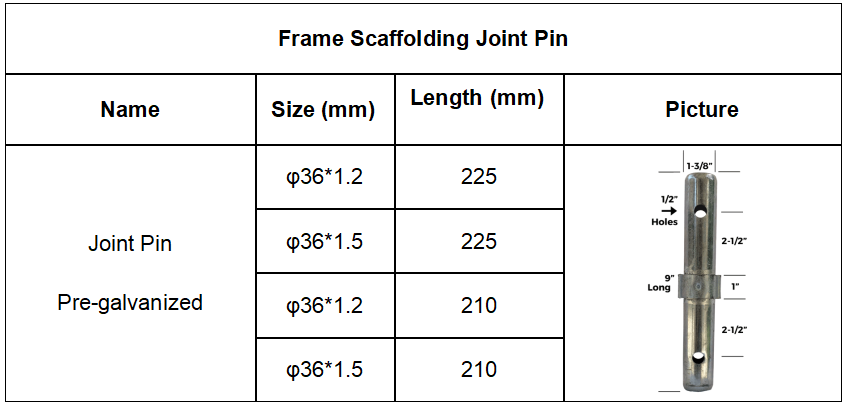

The length of the joint pin should be appropriate for the width of the frames being connected. It is crucial to use the correct size of pin specified by the scaffold manufacturer to ensure a proper fit and secure connection
Frame scaffolding joint pin, also known as a coupling pin or toggle pin, is a critical component used to connect and secure the vertical frames of a frame scaffolding system. It is an essential element in ensuring the stability and structural integrity of the scaffold.
The joint pin is typically made of steel and has a cylindrical shape with a solid body and a spring-loaded or captive locking mechanism. One end of the pin is threaded, while the other end has a handle or knob for easy installation and removal.
To assemble the frame scaffold, the joint pin is inserted through the pre-drilled holes located at the ends of the vertical frames. The threaded end of the pin is then tightened securely to create a tight connection between the frames. The pin's locking mechanism engages with the frame, preventing it from loosening or disengaging during use.
The length of the joint pin should be appropriate for the width of the frames being connected. It is crucial to use the correct size of pin specified by the scaffold manufacturer to ensure a proper fit and secure connection
