Frame Scaffolding
WUFANG

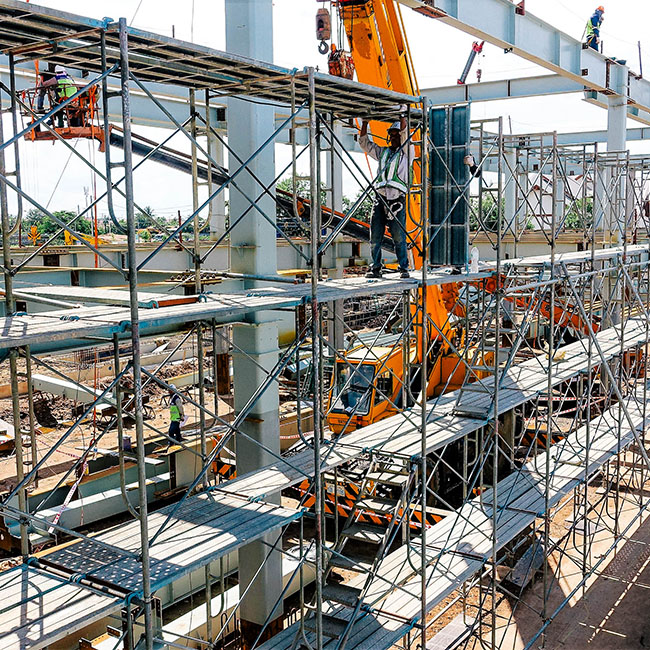

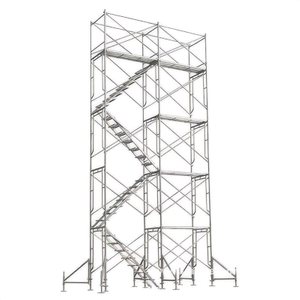

Frame scaffold, also known as a tubular scaffold or modular scaffold, is a temporary structure used to support workers and materials during construction, decoration, repair, or maintenance projects. It consists of a series of vertical frames interconnected by horizontal and diagonal braces, forming a stable framework.
Frame scaffolds are highly versatile and can be easily assembled and disassembled, making them suitable for various projects with different heights and configurations. The components of a frame scaffold include vertical frames, cross braces, planks, base plates, and adjustable screw jacks. The frame is made in a wide variety of sizes and configurations, and we can meet customer’s requirements in width, height, OD, thickness, etc.
Frame scaffold, also known as a tubular scaffold or modular scaffold, is a temporary structure used to support workers and materials during construction, decoration, repair, or maintenance projects. It consists of a series of vertical frames interconnected by horizontal and diagonal braces, forming a stable framework.
Frame scaffolds are highly versatile and can be easily assembled and disassembled, making them suitable for various projects with different heights and configurations. The components of a frame scaffold include vertical frames, cross braces, planks, base plates, and adjustable screw jacks. The frame is made in a wide variety of sizes and configurations, and we can meet customer’s requirements in width, height, OD, thickness, etc.
1. Easy erection, strong loading capacity, safety and stability.
2. Easy to transport and knock down, high efficiency, save massive manpower and resource.
3. Easy to carry and operate with the weight about 20kg/piece.
4. Assembly & disassembly with hands only.
1. Easy erection, strong loading capacity, safety and stability.
2. Easy to transport and knock down, high efficiency, save massive manpower and resource.
3. Easy to carry and operate with the weight about 20kg/piece.
4. Assembly & disassembly with hands only.
Scaffolding Frame | |||
Name | Size (mm) | Width x Height (mm) | Picture |

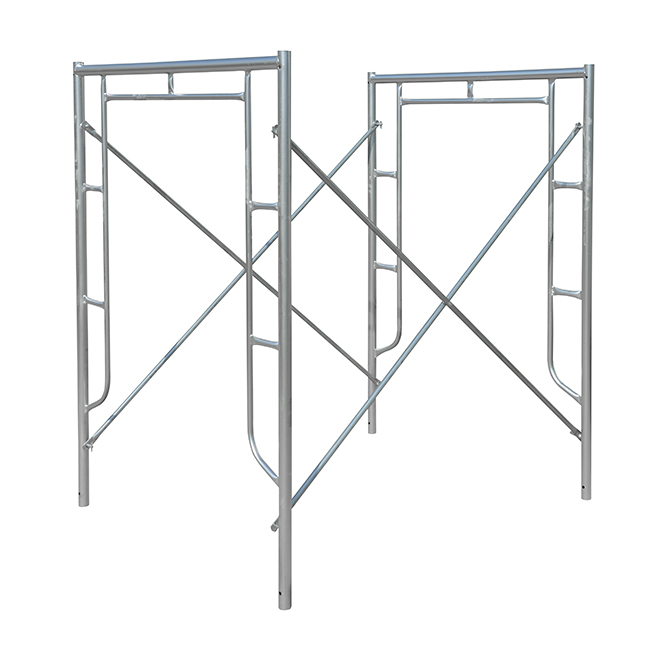

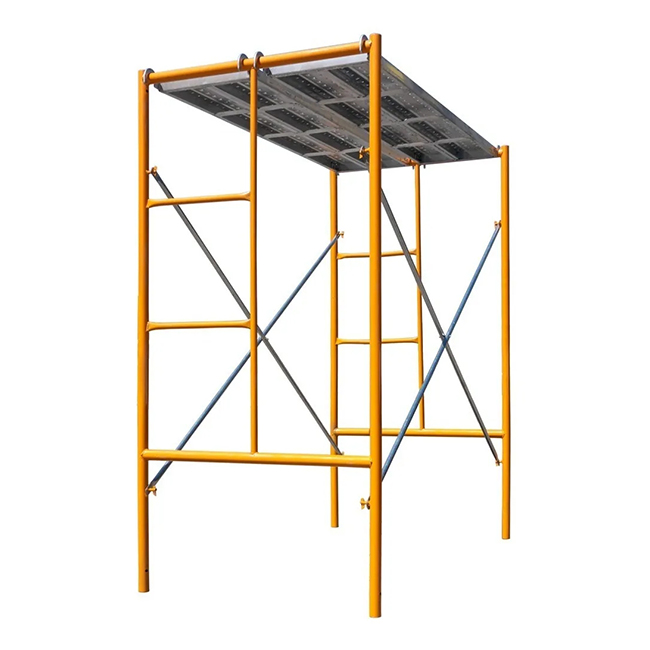

Main frame Pre-galvanized or Powder Coated | Main tube: φ42*(1.8/2.0/2.2) Inner tube: φ25*1.5 Or as per required | 1219*1524 | |
1219*1700 | |||
1219*1930 | |||
1520*2000 | |||
914*1700 | |||
914*1930 | |||

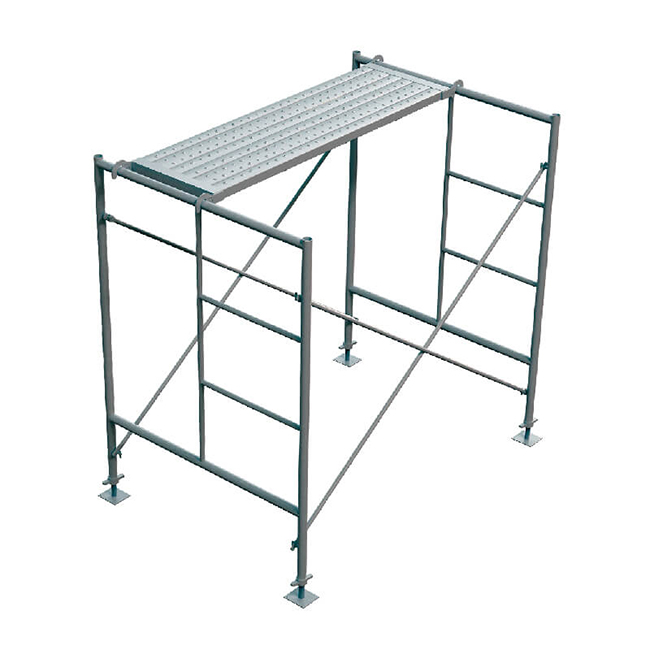

H frame Pre-galvanized or Powder Coated | Main tube: φ42*(1.8/2.0/2.2) Inner tube: φ25*(1.5/1.8/2.0) Or as per required | 1219*1524 | |
1219*1700 | |||
1219*1930 | |||
1520*2000 | |||
914*1700 | |||
914*1930 |

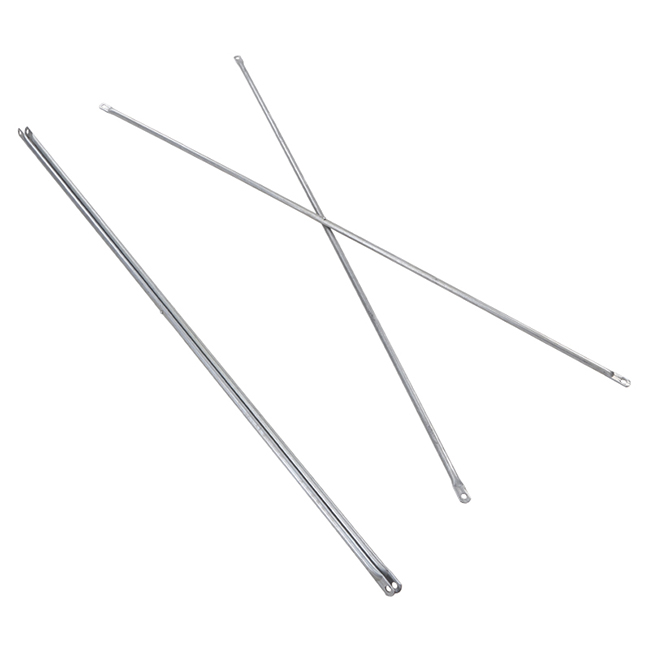

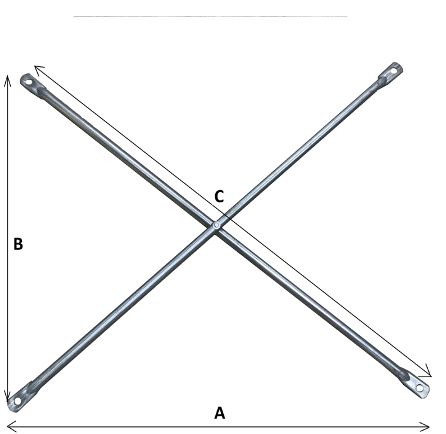

Cross Brace | |||
Name | Size (mm) | Size (mm) | Picture |
Cross Brace Pre-galvanized | φ21.3*1.0 φ21.3*1.2 φ21.3*1.4 Or as per required | 1829*1219*2198 | |
1829*914*2045 | |||
1829*610*1928 | |||
1219*1219*1724 | |||
1219*610*1363 |

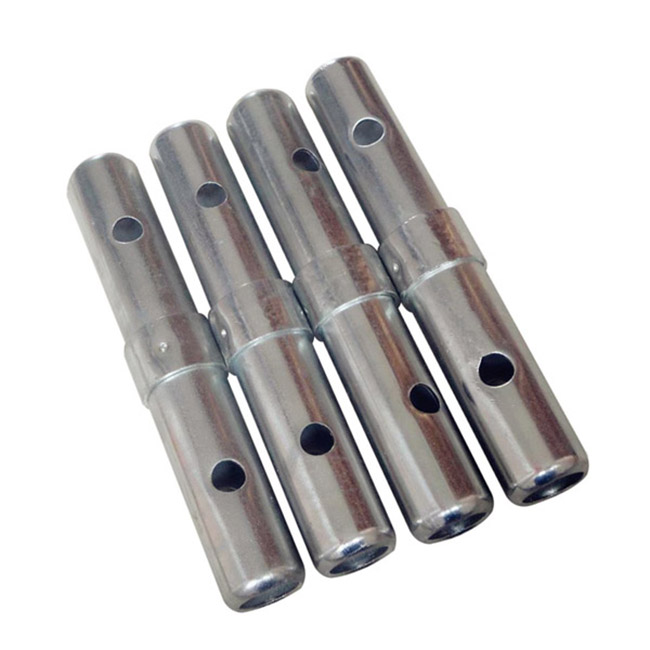

Joint Pin | |||
Name | Size (mm) | Length (mm) | Picture |
Joint Pin Pre-galvanized | φ35*1.5 | 225 | |
φ36*1.2 | 225 | ||
φ36*1.5 | 225 |
