Steel Prop

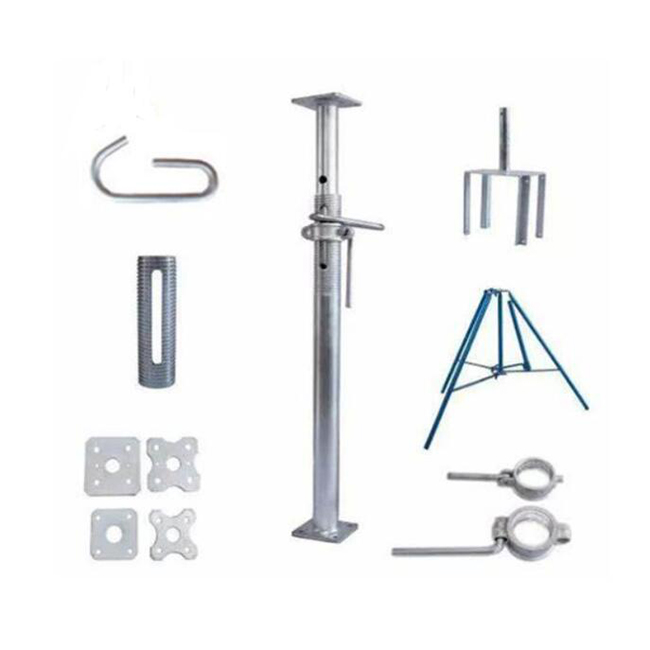

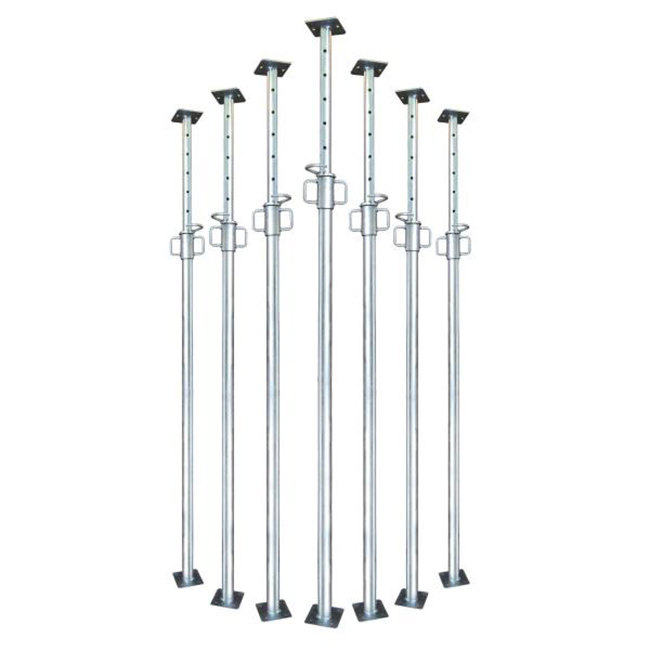

Steel props are vertical supports made of steel tubes, which can be adjusted to the required height by means of an internal threaded mechanism.
Availability:
Quantity:
  • Steel Prop

  • WUFANG

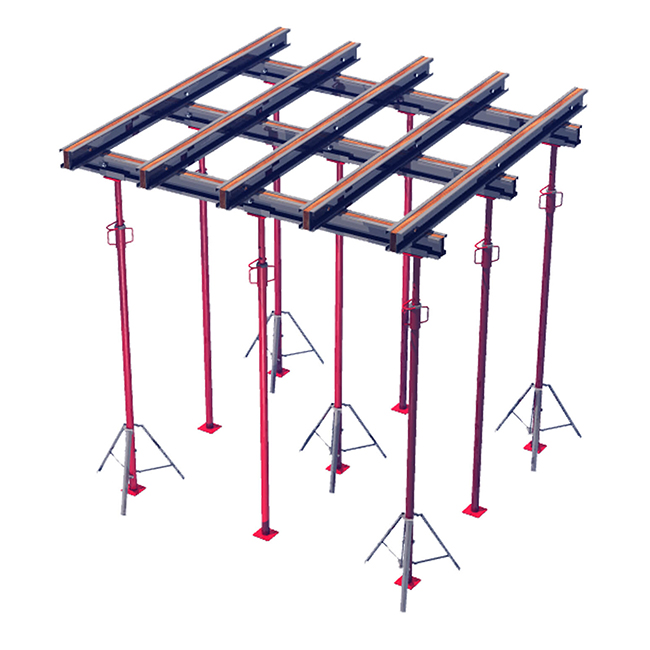

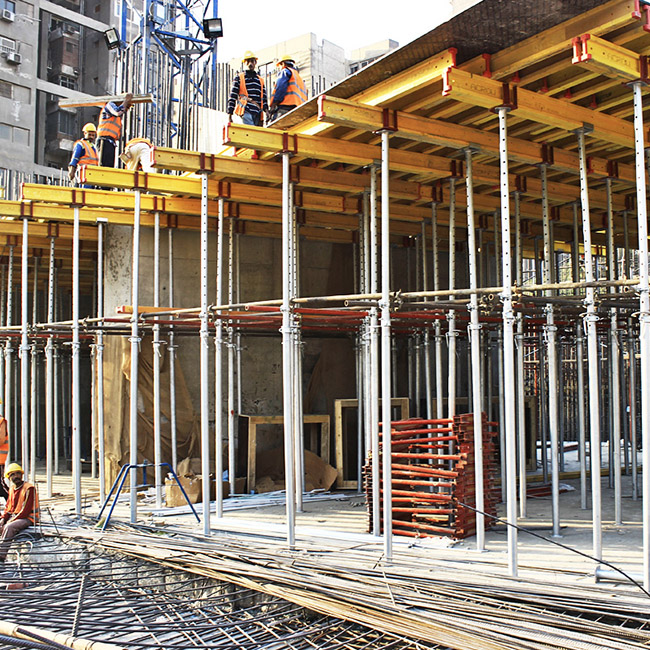

Steel props are vertical supports made of steel tubes, which can be adjusted to the required height by means of an internal threaded mechanism. They are used to support loads and provide temporary stability to structures during construction, renovation, and maintenance work. Steel props are commonly used in construction projects to support formwork, scaffolding, and falsework, as well as to support beams and slabs.


Steel props offer several advantages over other types of supports, such as timber props and concrete blocks. They are stronger, more durable, and more stable than timber props, which can warp, split, or rot over time. Steel props are also more versatile and can be adjusted to the required height, whereas timber props are limited by their fixed length.

Steel props are also more cost-effective than concrete blocks, which are heavy, bulky, and require a crane or other lifting equipment to move them. Steel props are lightweight, easy to handle, and can be transported in a small vehicle or trailer. They are also reusable and can be used on multiple projects, which makes them a more sustainable and environmentally friendly option.

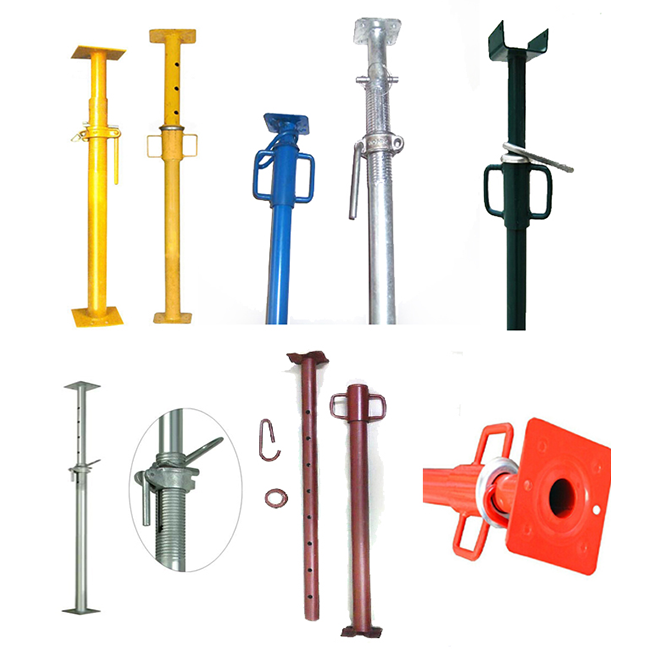

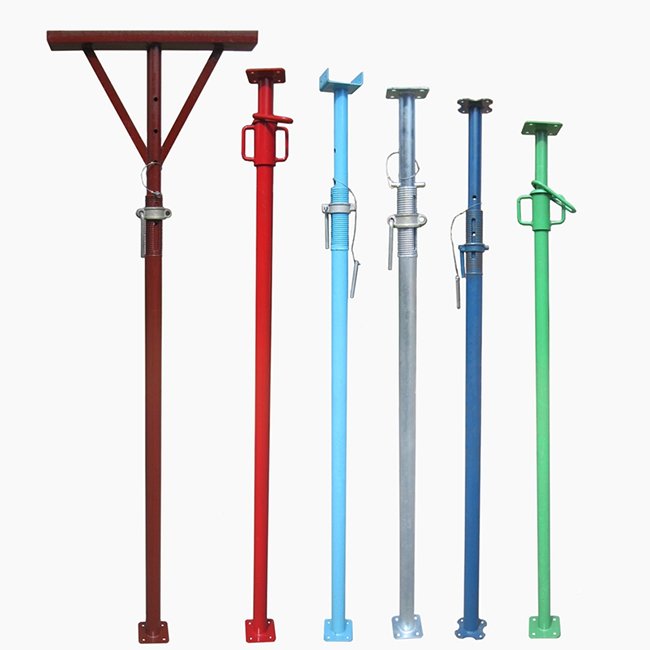

1. Type: Spanish type (40/48mm); Italian type (48/56mm); Middle east type (48/60mm)
2. Surface: Painted, Powder Coated, Pre-galvanized, Electro-galvanized, Hot dip galvanized
3. Adjust length: 1.6-5.5M


Prop Type

Tube Size(mm)

Length (M)


Spanish Type

Inner tube: 40 * (1.5-2.75)mm

Outer tube: 48 * (1.5-2.2)mm

1.7-3.0

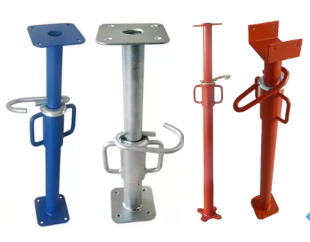

WX20230824-1644522x

TX`OKINFGJ~TD7MX~9%3}$N

2.0-3.6

2.2-4.0

2.5-4.5

Italian Type

Inner tube: 48 * (1.5-2.75)mm

Outer tube: 56 * (1.5-2.2)mm

1.7-3.0

1.8-3.2

2.2-4.0

2.5-4.5

Middle East Type

Inner tube: 48 * (1.5-3.5)mm

Outer tube: 60 * (1.5-3.5)mm

1.7-3.0

IA66O]QJ)$S~UJS(T~12UFT

WX20230824-1645502x


2.0-3.6

2.2-4.0

2.5-4.5

2.8-5.0
