Brazil Hot Sell Cup Nut Light Duty Painted Acrow Prop

WUFANG is an adjustable steel prop manufacturer in China. You can find from us lightweight adjustable steel props, heavy-duty props and medium-duty props.

WUFANG manufactures adjustable steel props according to client request. In Manufacturing, the adjustable steel props fabrication quality is controlled according to ISO 9001 Standard.

As an experience adjustable steel props exporter, WUFANG offers door to door delivery in worldwide to your construction projects.

Send us your adjustable steel props requirement to get a competitive price by import directly from WUFANG.

Availability:
Quantity:
Inquire Add to Basket

  • 56/48 48/40

  • WUFANG

  • WFAP04

Overview

Key attributes

Industry-specific attributes

Warranty
1 Year
After-sale Service
Online technical support, NONE
Project Solution Capability
graphic design, Others
Application
to support floor formwok
Design Style
construction

Other attributes

Place of Origin
Hebei, China
Type
steel prop
Brand Name
WUFANG
Product name
Steel Prop
Material
Q235 Steel
Surface treatment
Painted, Powder Coated, Pre-galvanized, Electro Galvanized, HDG
Type
Spanish Type, Italian Type, Middle east Type
Base Plate
Square base plate, flower base plate, U-head, etc
Tube Diameter
40/48*1.6-2.5mm, 48*56*1.6-2.5mm, 48/60*1.6-4.0mm
Adjustable Length
1.7-3M, 2-3.6M, 2.2-4M, 3-5M, etc
Packing
loose packing, steel strip or pallet
MOQ
1000pcs
Bearing Capacity
10~30KN

Supply Ability

Supply Ability
40000 Piece/Pieces per Month

Product details

Product Specification
Adjustable shoring props is applied to concrete formwork. It consists of the inner tube, outer tube, and welding plate on end. The outer tube has a screwed pipe on the head so that the props can be adjusted in length.

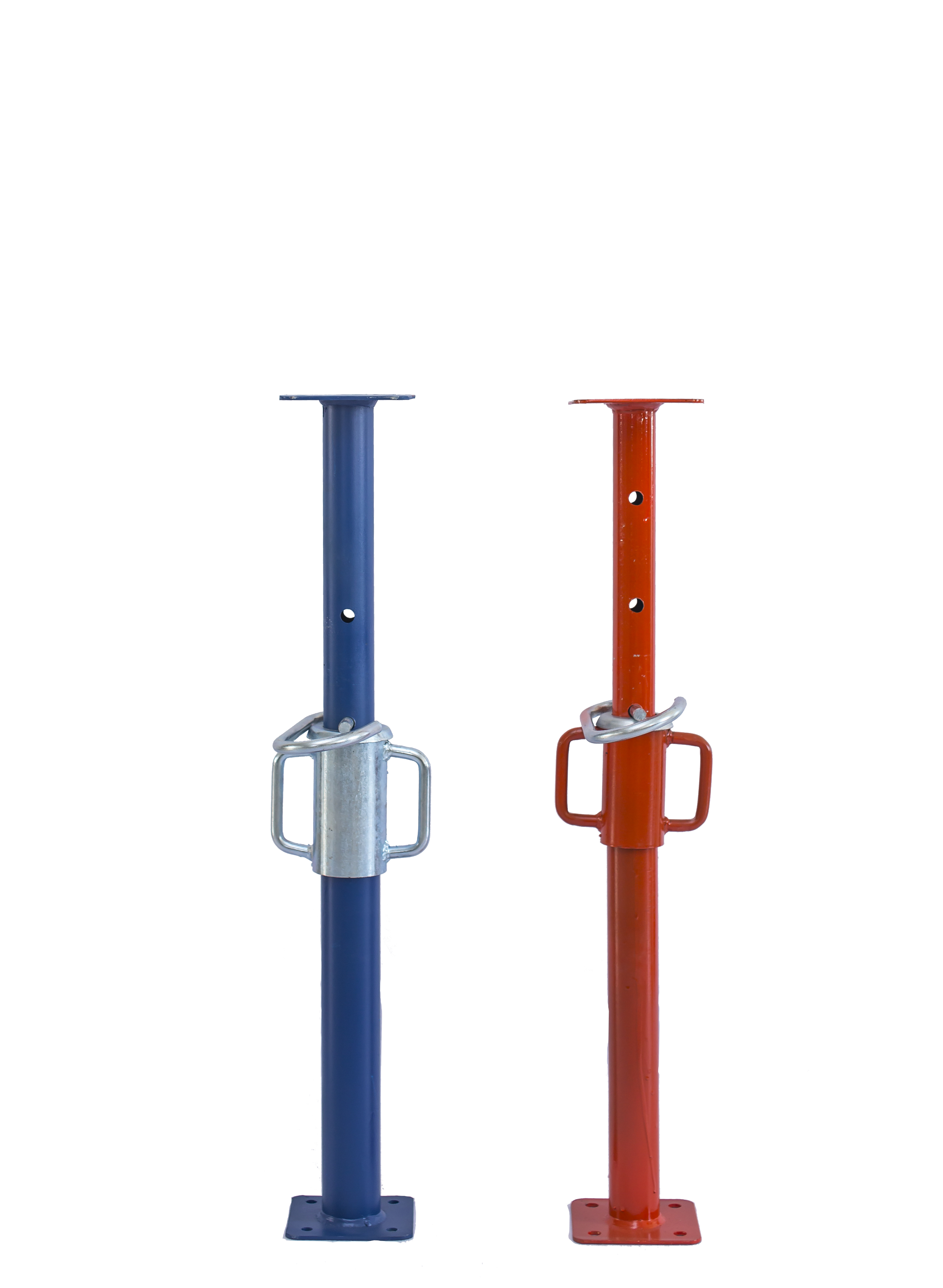

Light Duty Cup Nut Steel Prop
Adjustable Height
Outer Tube
Inner Tube
Top & Base Plate
Unit Weight
1700 - 3000 mm
48 x 1.8 mm
40 x 1.8 mm
120 x 120 x 4 mm
7.5 kg/pc
2000 - 3600 mm
48 x 1.8 mm
40 x 1.8 mm
120 x 120 x 4 mm
8.5 kg/pc
2200 - 4000 mm
48 x 1.8 mm
40 x 1.8 mm
120 x 120 x 4 mm
9.4 kg/pc
Middle Duty Cup Nut Steel Prop
Adjustable Height
Outer Tube
Inner Tube
Top & Base Plate
Unit Weight
1700 - 3000 mm
56 x 1.8 mm
48 x 1.8 mm
120 x 120 x 4 mm
8.8 kg/pc
2000 - 3600 mm
56 x 1.8 mm
48 x 1.8 mm
120 x 120 x 4 mm
10.3 kg/pc
2200 - 4000 mm
56 x 1.8 mm
48 x 1.8 mm
120 x 120 x 4 mm
11.0 kg/pc
Heavy Duty Cast Nut Steel Prop
Adjustable Height
Outer Tube
Inner Tube
Top & Base Plate
Unit Weight
1700 - 3000 mm
60 x 1.8 mm
48 x 1.8 mm
120 x 120 x 4 mm
8.5 kg/pc
2000 - 3600 mm
60 x 1.8 mm
48 x 1.8 mm
120 x 120 x 4 mm
9.7 kg/pc
2200 - 4000 mm
60 x 1.8 mm
48 x 1.8 mm
120 x 120 x 4 mm
10.7 kg/pc
Product Advantages
Adjustable steel props provide the most economic method for supporting to all kinds of shuttering work and formwork. Steel Prop is a labor and time saving device to support shuttering and formwork.
* Durable, reusable and safety: Steel props are of large bearing capacity and can be used repeated times
* Can be extended to a desired length: Steel props are adjustable to various height requirements.
* Improve working efficiency and save labor cost: Quick and east to erect even by unskilled labors
* Large and safety operating area
 * Compact for economical transportation and storage
Packing & Loading
Applications
♦steel Props are mainly used for supporting slab formwork.
♦Numerous practical features ensure fast and safe handling.
Company Profile
1. Location: Tangshan Wufang is leading scaffolding manufacturer, located in Tangshan, Hebei Province, the raw material basement.
2. Team: We have professional team for sale, project design and construction.
3. Main products: Ringlock Scaffolding, Frame Scaffolding, Steel Plank, Catwalk, Ladders, Pipe & Clamp, Steel Prop, etc.
4. Production capacity: 7000-10000 Tons/month.
5. Loading capacity: 8-12 containers/day.
6. Delivery time: 10-15 days for 3-5 containers.
Fast delivery to satisfy your urgent project demand.


Steel props offer several advantages over other types of supports, such as timber props and concrete blocks. They are stronger, more durable, and more stable than timber props, which can warp, split, or rot over time. Steel props are also more versatile and can be adjusted to the required height, whereas timber props are limited by their fixed length.

Steel props are also more cost-effective than concrete blocks, which are heavy, bulky, and require a crane or other lifting equipment to move them. Steel props are lightweight, easy to handle, and can be transported in a small vehicle or trailer. They are also reusable and can be used on multiple projects, which makes them a more sustainable and environmentally friendly option.


1. Type: Spanish type (40/48mm); Italian type (48/56mm); Middle east type (48/60mm)
2. Surface: Painted, Powder Coated, Pre-galvanized, Electro-galvanized, Hot dip galvanized
3. Adjust length: 1.6-5.5M


Prop Type

Tube Size(mm)

Length (M)


Spanish Type

Inner tube: 40 * (1.5-2.75)mm

Outer tube: 48 * (1.5-2.2)mm

1.7-3.0

WX20230824-1644522x

TX`OKINFGJ~TD7MX~9%3}$N

2.0-3.6

2.2-4.0

2.5-4.5

Italian Type

Inner tube: 48 * (1.5-2.75)mm

Outer tube: 56 * (1.5-2.2)mm

1.7-3.0

1.8-3.2

2.2-4.0

2.5-4.5

Middle East Type

Inner tube: 48 * (1.5-3.5)mm

Outer tube: 60 * (1.5-3.5)mm

1.7-3.0

IA66O]QJ)$S~UJS(T~12UFT

WX20230824-1645502x

2.0-3.6

2.2-4.0

2.5-4.5

2.8-5.0
