Painted Adjustable Shoring Jack for Construction

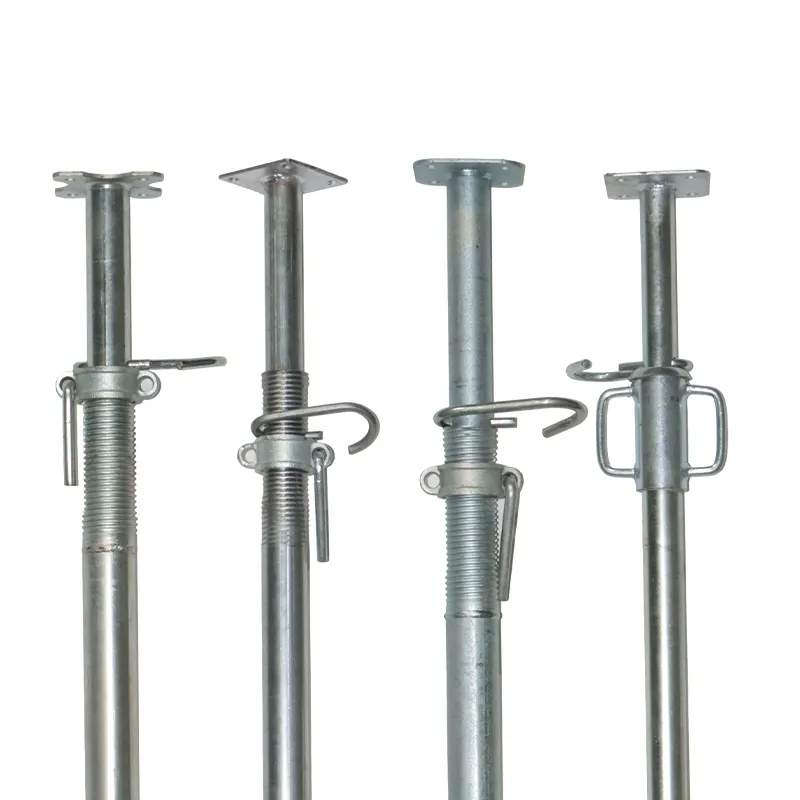

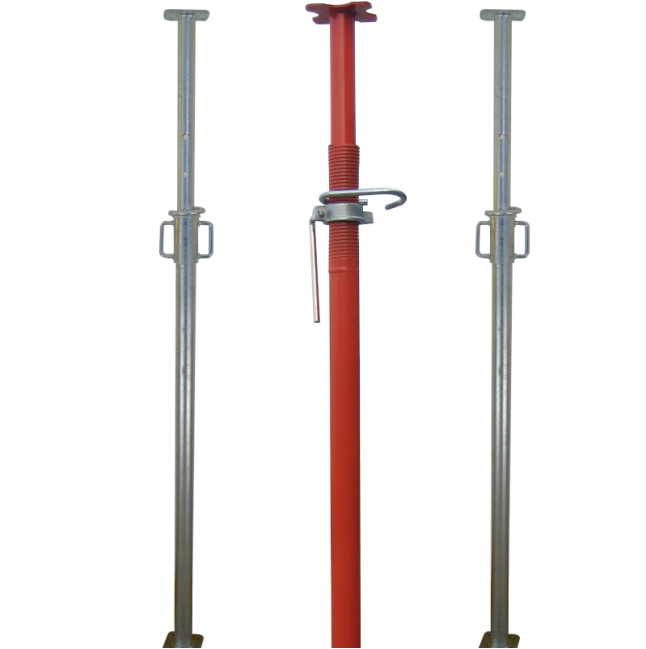

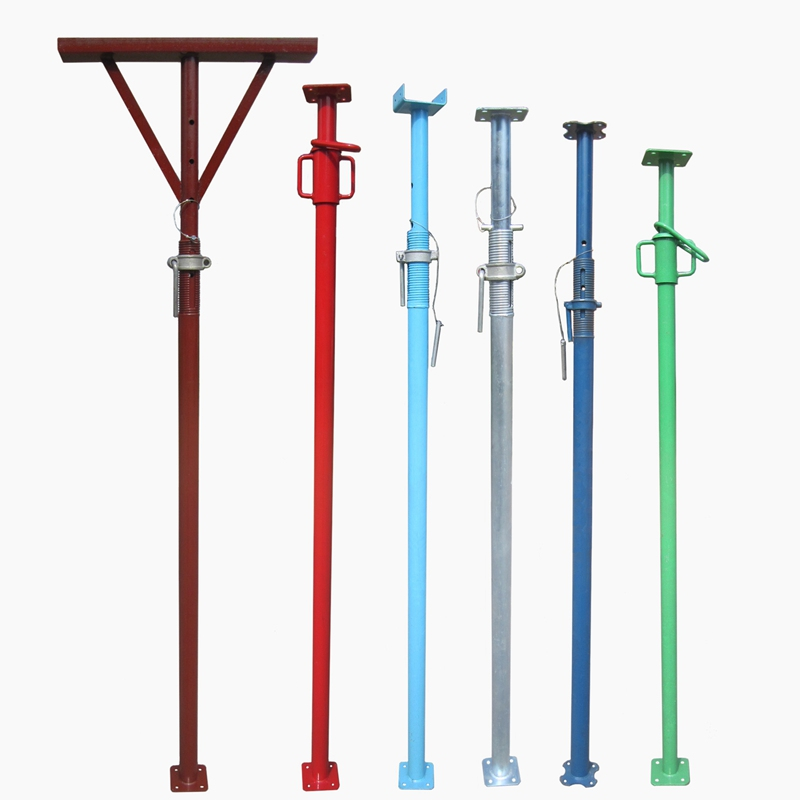

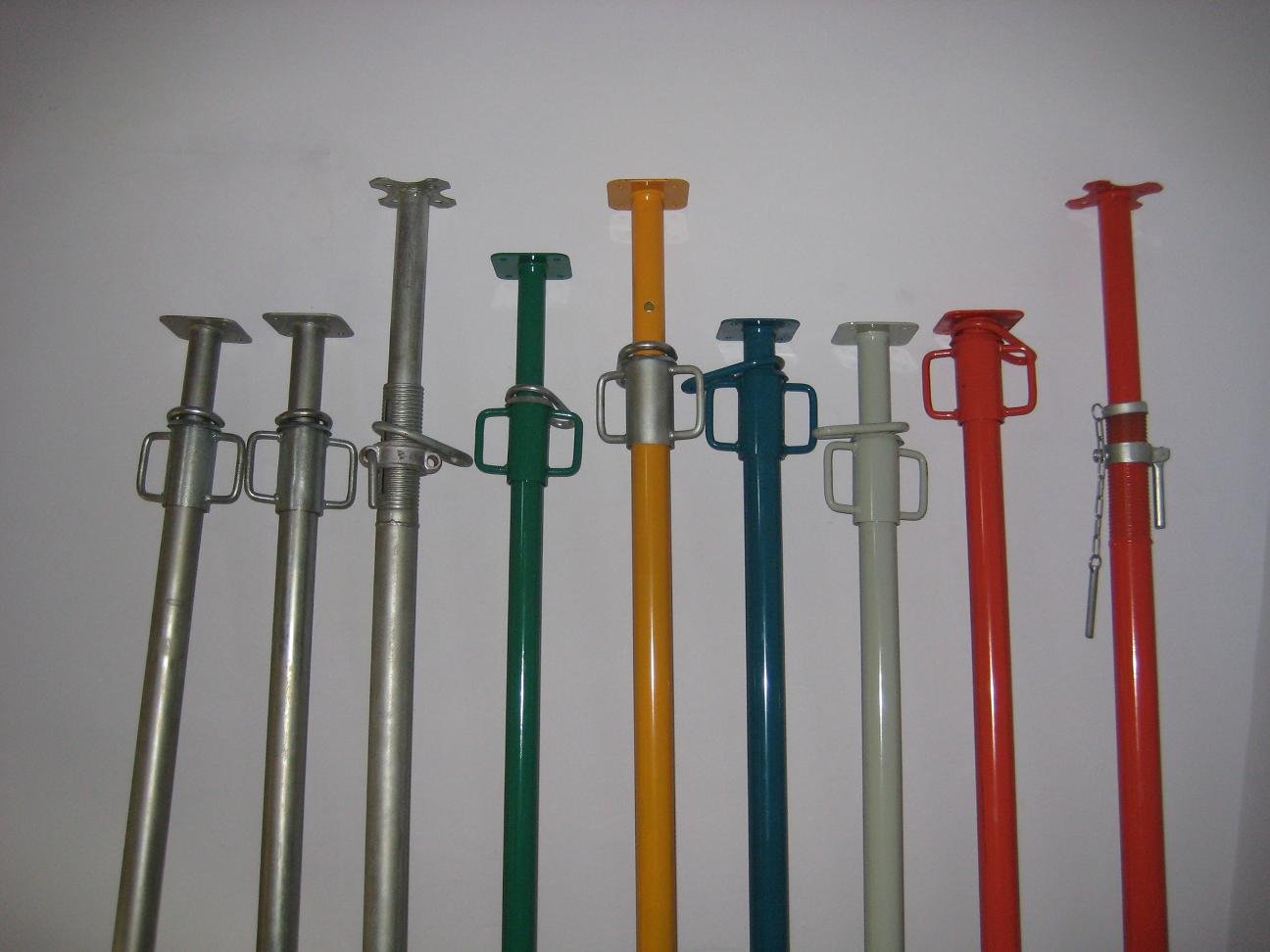

Steel props (shoring jack )are vertical supports made of steel tubes, which can be adjusted to the required height by means of an internal threaded mechanism.
Availability:
Quantity:
  • shoring jack

  • WUFANG



Light Duty Props: Light duty props are smaller and lighter steel props designed for lighter loads and applications. They are commonly used for supporting lightweight formwork, temporary structures, or as secondary supports in conjunction with heavier props.

Heavy Duty Props: Heavy duty props are larger and more robust steel props designed to support heavier loads and withstand greater forces. These props are commonly used in applications where high load-bearing capacity is required, such as supporting large beams or slabs

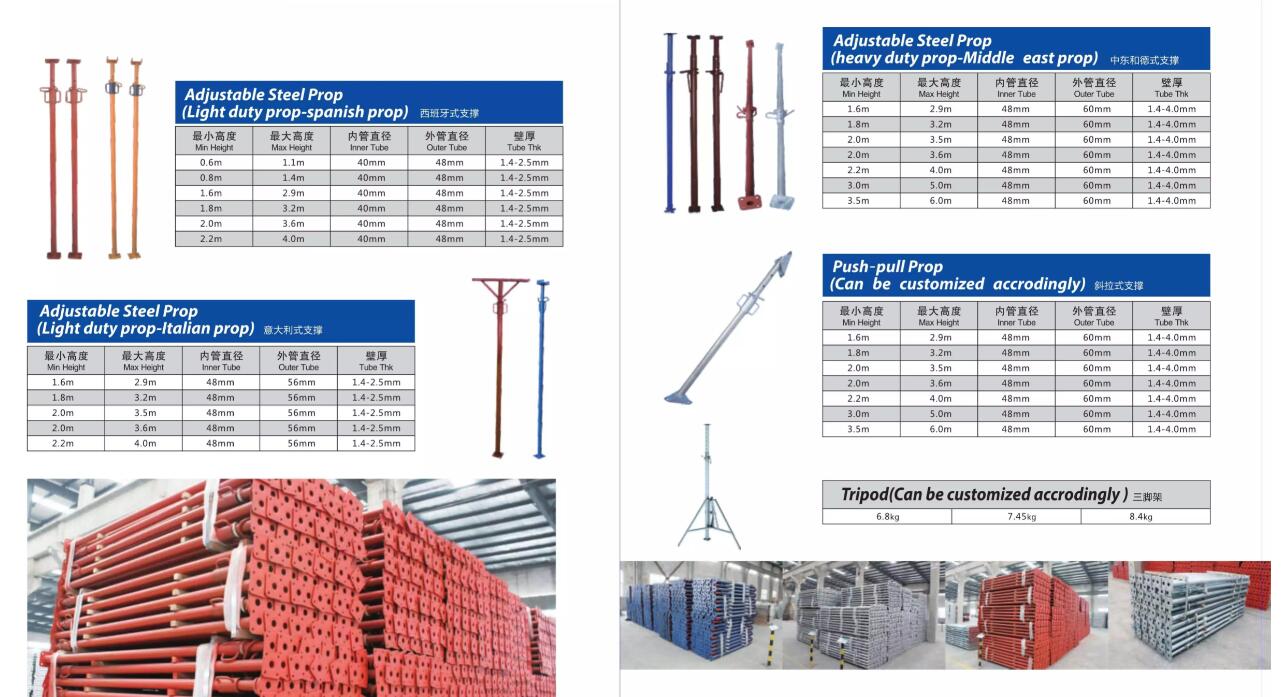

steel Prop size 01


Painted Galvanised Formwork Deck Support Telescopicos Puntales Metalicos Scaffold Shoring Prop Adjustable Props Jack Scaffolding Steel Props

Steel props(shoring jack ) offer several advantages over other types of supports, such as timber props and concrete blocks. They are stronger, more durable, and more stable than timber props, which can warp, split, or rot over time. Steel props are also more versatile and can be adjusted to the required height, whereas timber props are limited by their fixed length.

Steel props are also more cost-effective than concrete blocks, which are heavy, bulky, and require a crane or other lifting equipment to move them. Steel props are lightweight, easy to handle, and can be transported in a small vehicle or trailer. They are also reusable and can be used on multiple projects, which makes them a more sustainable and environmentally friendly option.


1. Type: Spanish type (40/48mm); Italian type (48/56mm); Middle east type (48/60mm)
2. Surface: Painted, Powder Coated, Pre-galvanized, Electro-galvanized, Hot dip galvanized
3. Adjust length: 1.6-5.5M


Prop Type

Tube Size(mm)

Length (M)


Spanish Type

Inner tube: 40 * (1.5-2.75)mm

Outer tube: 48 * (1.5-2.2)mm

1.7-3.0

WX20230824-1644522x

TX`OKINFGJ~TD7MX~9%3}$N

2.0-3.6

2.2-4.0

2.5-4.5

Italian Type

Inner tube: 48 * (1.5-2.75)mm

Outer tube: 56 * (1.5-2.2)mm

1.7-3.0

1.8-3.2

2.2-4.0

2.5-4.5

Middle East Type

Inner tube: 48 * (1.5-3.5)mm

Outer tube: 60 * (1.5-3.5)mm

1.7-3.0

IA66O]QJ)$S~UJS(T~12UFT

WX20230824-1645502x


2.0-3.6

2.2-4.0

2.5-4.5

2.8-5.0
