Introduction Scaffolding Toe Board Coupler

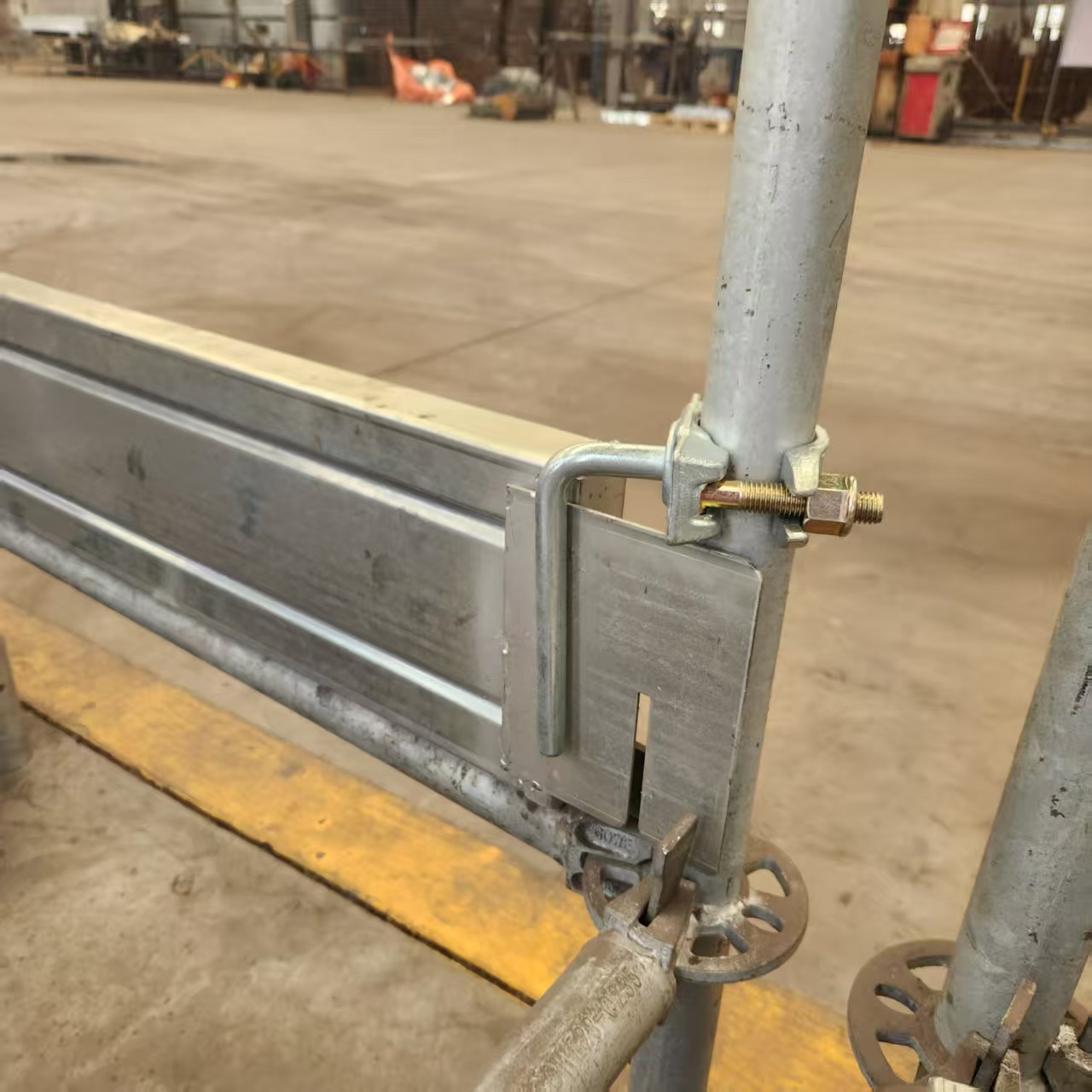

A toe board retaining coupler (also known as a board retaining coupler or toe board clip) is a scaffolding component used to secure toe boards to the scaffolding structure, ensuring they are firmly in place and preventing materials from falling off the edge of the platform. These couplers are crucial for safety on scaffolding, providing a barrier against falling objects and protecting workers below.

Here's a more detailed explanation:

Purpose:

Toe board retaining couplers are designed to attach toe boards (typically made of wood or metal) to the scaffolding's standards (vertical posts) or other structural members.

Function:

They prevent the toe boards from being dislodged due to impact or movement, thus creating a solid barrier.

Types:

While the term "toe board retaining coupler" can encompass various types of clamps and clips, it generally refers to fittings specifically designed for securing toe boards. Some may be pressed steel, while others might be forged.

Importance:

Toe boards are a critical part of fall protection on scaffolding. They are required when there's a risk of tools, materials, or debris falling from the platform.

Regulations:

In many jurisdictions, there are specific requirements for toe boards, including minimum height and the gap allowed between the toe board and the platform surface. For example, OSHA (Occupational Safety and Health Administration) requires a toe board to be at least 3.5 inches tall with a gap of no more than ¼ inch.

Connection:

Toe board retaining couplers are designed to connect the toe board to the scaffolding structure, often using bolts or other fasteners.
