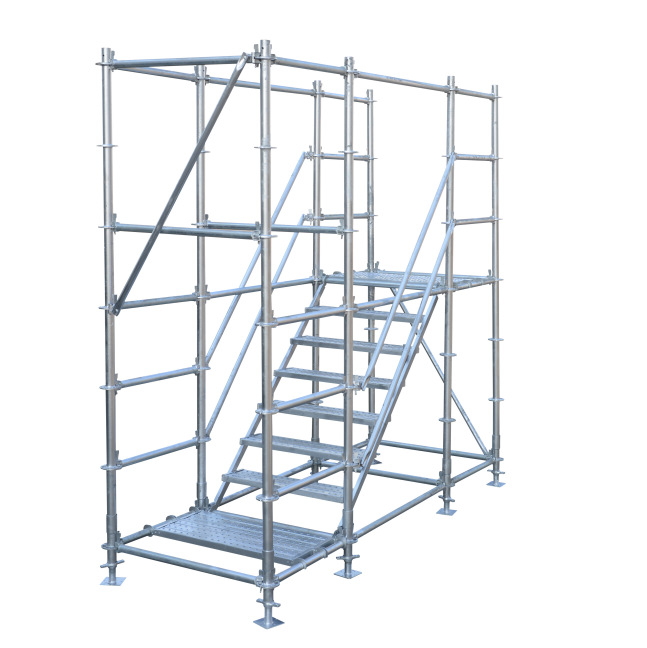

Construction Material Galvanized Steel Ringlock Scaffolding

Made from high-quality steel, ringlock scaffolding is durable, sturdy, and resistant to corrosion, ensuring long-lasting performance in various weather conditions. The unique design of the ringlock system allows for quick and easy assembly, making it a preferred choice for time-sensitive projects. With its modular components, this scaffolding can be easily adjusted to different heights and configurations to suit specific project requirements. The interlocking components provide enhanced stability and safety, ensuring a secure working environment for construction workers. Additionally, the galvanized steel finish provides a smooth and clean surface, minimizing the risk of injuries caused by sharp edges or rough surfaces. Whether you need to construct a simple platform or a complex structure, this galvanized steel ringlock scaffolding is a reliable and efficient solution for all your construction needs.

Availability:

Quantity:



Inquire Add to Basket

Product Description

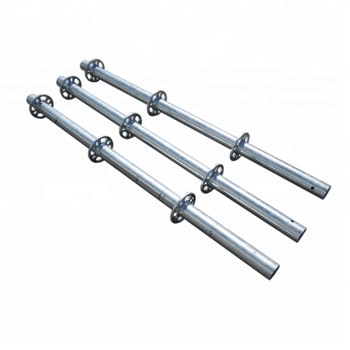

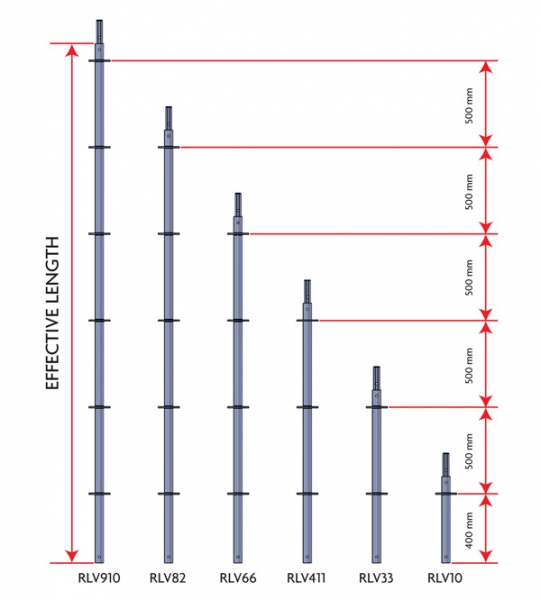

Ringlock Scaffolding Vertical Standard with/without Spigot Q355B Steel Tubes OD48.3 x 3.2mm
	Code	Item	Length
	WF-RV001	1'8" Standard (1 rosette) 0.5M	500mm
	WF-RV002	3'3" Standard (2 rosette) 1.0M	1000mm
	WF-RV003	4'11" Standard (3 rosette) 1.5M	1500mm
	WF-RV004	6'6" Standard (4 rosette) 2.0M	2000mm
	WF-RV005	8'12" Standard (5 rosette) 2.5M	2500mm
	WF-RV006	9'9" Standard (6 rosette) 3.0M	3000mm

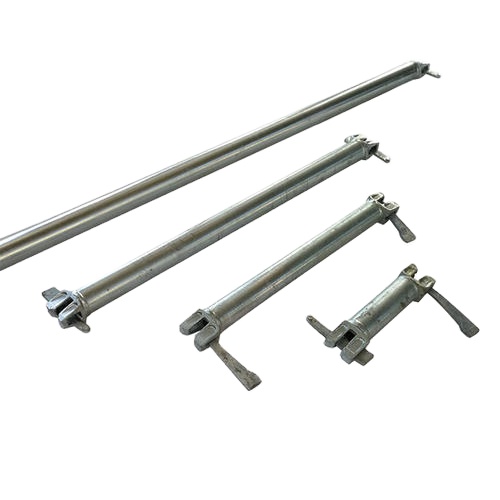

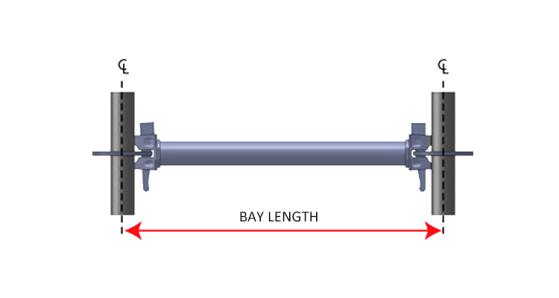

Ringlock Scaffolding Horizontal Ledger Q355B/Q235B Steel Tube OD48.3 x 3.2mm/3.0mm/2.75mm/2.5mm
	Code	Item	Length
	WF-RL001	2'2" Horizontal Ledger	650mm
	WF-RL002	3'6" Horizontal Ledger	1070mm
	WF-RL003	5'2" Horizontal Ledger	1570mm
	WF-RL004	7' Horizontal Ledger	2130mm
	WF-RL005	8' Horizontal Ledger	2440mm
	WF-RL006	10' Horizontal Ledger	3050mm

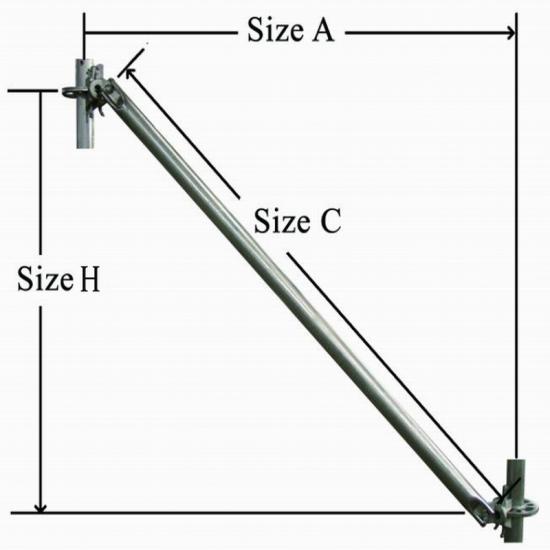

Ringlock Scaffolding Diagonal Brace Q355B/Q235B OD48.3 x 3.2mm/3.0mm/2.75mm/ 2.5mm Q195B Steel Tube OD42.2 x 2.75mm
	Code	Size A (Ledger length)	Size H (Vertical length)
	WF-RD001	650mm	1500mm or 2000mm
	WF-RD002	1070mm	1500mm or 2000mm
	WF-RD003	1570mm	1500mm or 2000mm
	WF-RD004	2130mm	1500mm or 2000mm
	WF-RD005	2440mm	1500mm or 2000mm
	WF-RD006	3050mm	1500mm or 2000mm
	Code	Item	Size

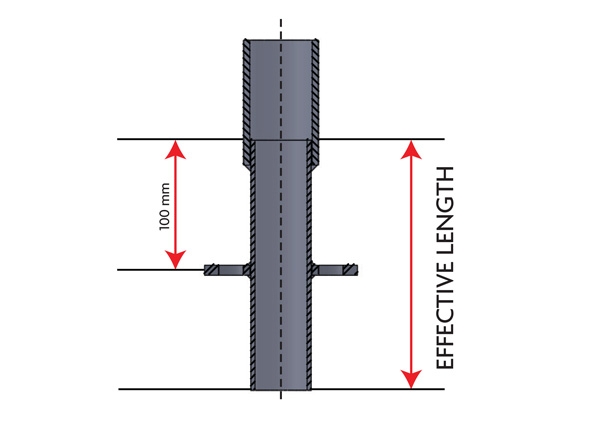

	WF-RBC001	Ringlock Base Collar 0.20M	48.3x3.2x200mm
	WF-RBC002	Ringlock Shor Standard 0.25M	48.3x3.2x250mm
	WF-RBC003	Ringlock Shor Standard 0.35M	48.3x3.2x350mm
	WF-RBC004	Ringlock Shor Standard 0.5M	48.3x3.2x500mm

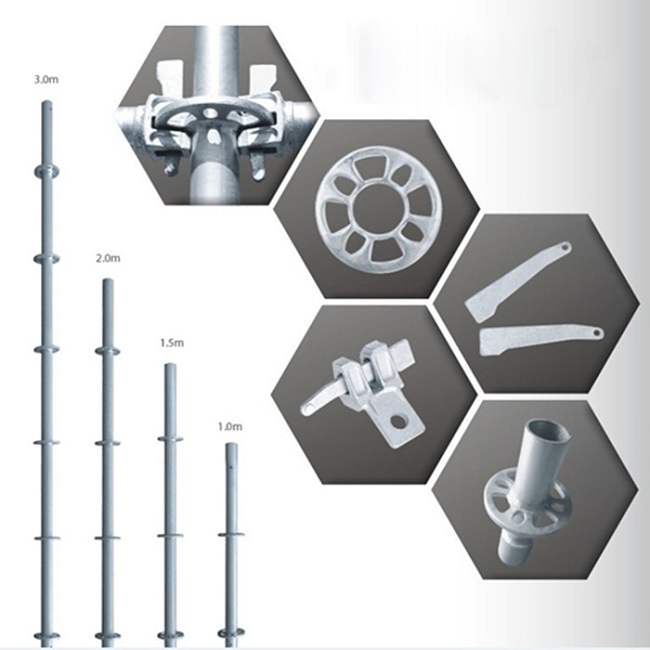

Ringlock Scaffolding Accessories

Advantages of Ringlock scaffolding system:

1. Safety. More safe and stable than other scaffolding systems due to the the reasonable joint design and advanced manufacturing technology.

2. Low cost, high efficiency. With reduced components and simple design, ringlock system can be assembled and dismantled very easily and quickly, can be 2-3 times faster than a traditional one, thus greatly reducing the time and labor cost.

3. High bearing capacity. Made of high-strength Q3455B welded pipe, ringlock scaffolding has a higher bearing capacity and rigidity, which ensures the workers' safety.

4. Long lifespan. Ringlock scaffolding are protected against corrosion by hot-dip galvanized, this excellent surface finish extend the service life to 15-20 years.

5. Less material used. Ringlock scaffolding can reduce 1/3 to 1/2 materials compared to conventional scaffolding system.

6. Versatile and flexible. A wide range of sizes and accessories are available, to offer maximum versatility.

7. Simple transport, storage and maintenance. No loose parts, save the use of couplers to avoid the lost and missing of components.
