Ringlock scaffolding and Cuplock scaffolding are two commonly used modular scaffolding systems in the construction industry. While both systems offer similar functionality, there are some key differences between Ringlock and Cuplock scaffolding:

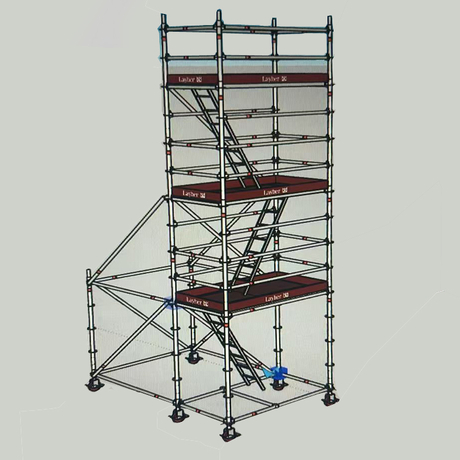

High Capacity Ringlock scaffolding consists of vertical standards with rosettes or connectors welded at regular intervals, onto which horizontal ledgers and diagonal braces can be easily attached. The connections are made by inserting wedge pins or captive pins into the rosettes. On the other hand, Cuplock scaffolding features vertical standards with cup-like nodes welded at regular intervals, onto which horizontal ledgers are secured by using captive cups. The connections are made by twisting the ledger into the cup.
HDG Ringlock scaffolding offers greater flexibility in terms of adjusting the height and configuration of the scaffolding system. It allows for easy and quick assembly and disassembly, making it suitable for projects that require frequent repositioning or changes in height. Cuplock scaffolding, while also versatile, is generally better suited for projects with a consistent height requirement or where fewer adjustments are needed.
Both Ringlock and Cuplock scaffolding systems have high load-bearing capacities. However, Ringlock scaffolding is often considered to have a higher load capacity due to its sturdy design and multiple connection points. This makes it suitable for supporting heavy loads and accommodating larger spans.
Ringlock scaffolding is generally faster to assemble and dismantle compared to Cuplock scaffolding. The wedge pin or captive pin connections of Ringlock scaffolding allow for quick and tool-free assembly, saving time and labor costs. Cuplock scaffolding requires twisting the ledgers into the cups, which can take slightly longer to complete.
Ringlock scaffolding is well-suited for complex and irregular structures, such as curved walls or circular platforms. The flexible nature of the system allows for easy adjustments and customization to fit various shapes and angles. Cuplock scaffolding, while still adaptable to some extent, may require additional fittings or modifications to accommodate complex structures.
Both Ringlock and Cuplock scaffolding systems are widely available in the market. However, the cost can vary depending on factors such as local availability, project size, and specific requirements. It is recommended to compare prices from different suppliers and consider the long-term benefits and efficiency of each system.
