Scaffolding Steel Ladder Beam

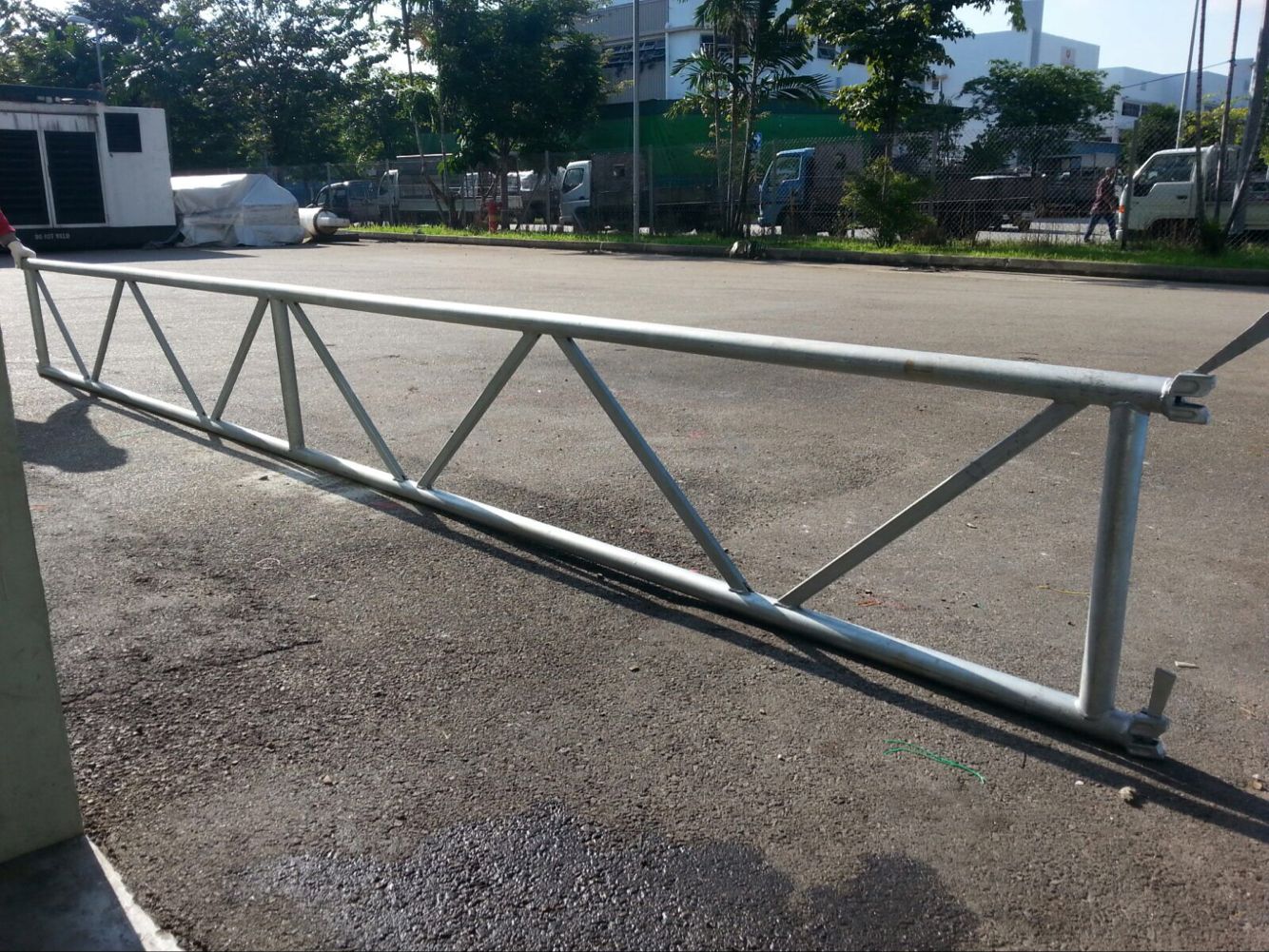

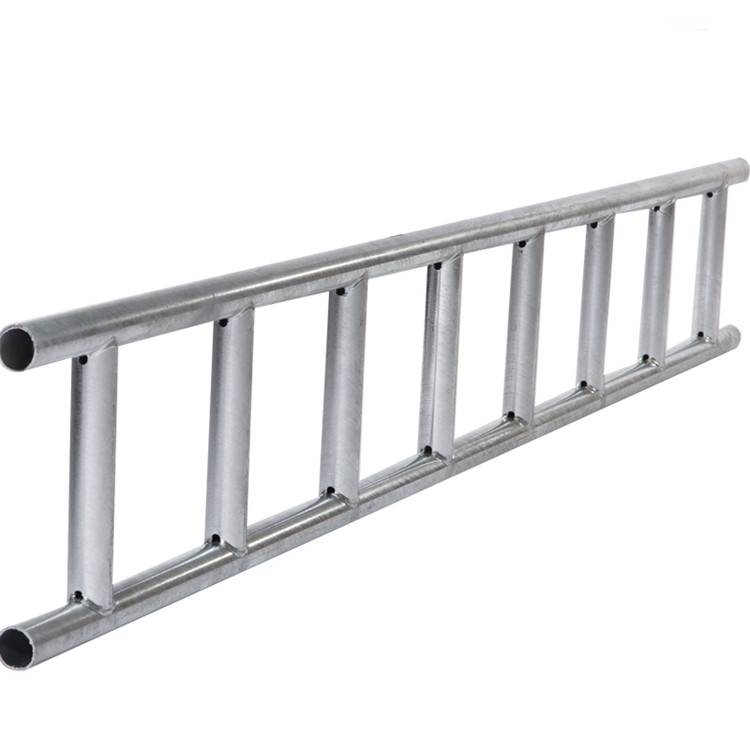

A scaffolding ladder beam, resembling a ladder, composed of a pair of tubular members connected by struts. There are two kinds of scaffolding ladder beam manufactured by Hunan World Scaffolding: galvanized steel ladder beam and aluminum ladder beam.

Availability:

Quantity:



Inquire Add to Basket

Product Description

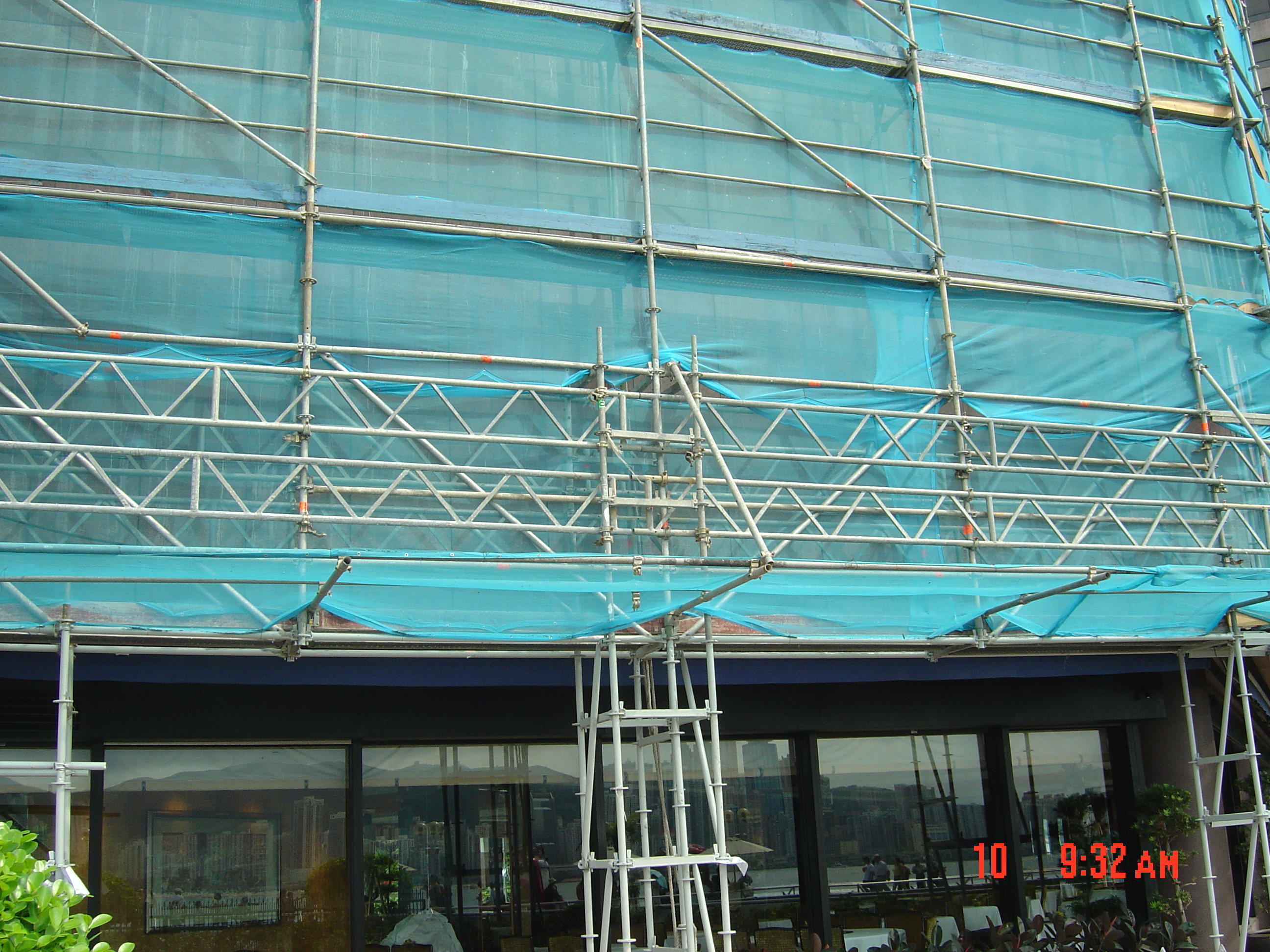

Ladder Beams are used where clear span is required in scaffolding or where greater strength is required in the horizontal members. Available in lengths up to 6m and can produce longer length on demand from Customer.

Benefits of Ladder Beam
(1) Immediate roof support over the excavated section
(2) Act as a model reassuring a minimum thickness once applying shotcrete.
(3) Become a part of the reinforcement within the shotcrete lining.
(4) Provide support for spilling, if needed, over subsequent excavation.


Outer tube (mm)	Inner tube (mm)	Width (mm)	Length (mm)
48.3 x 3.0	48.3 x 3.0	300	1000 / 2000 / 3000 4000 / 5000 / 6000
48.3 x 3.2	48.3 x 3.2
48.3 x 3.6	48.3 x 3.6
48.3 x 4.0	48.3 x 4.0
48.3 x 3.0	48.3 x 3.0	305	1000 / 2000 / 3000 4000 / 5000 / 6000
48.3 x 3.2	48.3 x 3.2
48.3 x 3.6	48.3 x 3.6
48.3 x 4.0	48.3 x 4.0
48.3 x 3.0	48.3 x 3.0	350	1000 / 2000 / 3000 4000 / 5000 / 6000
48.3 x 3.2	48.3 x 3.2
48.3 x 3.6	48.3 x 3.6
48.3 x 4.0	48.3 x 4.0
